Product Description

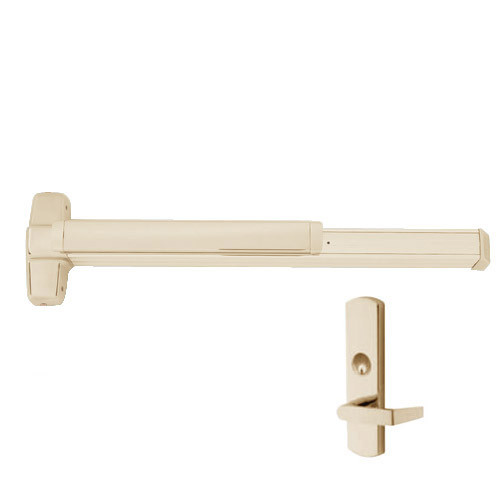

LD-9850WDC-L-US4-4-RHR Von Duprin 9850 Series with 996L Lever Non Fire Rated Wood Door Concealed Vertical Cable Exit Device with Less Dogging in Satin Brass Finish

This device is for a 48" door

The Von Duprin LD-9850WDC-L-US4-4-RHR series of exit device for all types of single and double wood doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The LD-9850WDC wood door concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9850WDC series has a "smooth mechanism case"

Features and Benefits:

• Satin Brass finish
• ANSI Function: 08
• Handing: Right handed
• Less dogging feature is included
• Includes 996L standard trim ANSI A156.3 (2008) Grade-1 certified
• Lever trim function - key retracts latchbolt
• Device lengths: 4 feet (1219 mm) i.e 4' device for 2'10" to 4' (864mm to 1219 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9850WDC series exit devices are UL listed for panic exit hardware
• Strike: Top - 249 and bottom - 450 unfinished strikes included as always
• Latch bolt: Deadlocking top and bottom bolt, 1-1/2" (38mm) throw
• Sex bolts and 8" scalp plate is included
• Device centerline from finished floor: 39-5/8" (1006mm) standard
• Vertical cable: 7/32" (6mm) diameter stainless steel cables
• Scalp Plate: Device is furnished standard with an 15" (381mm) long scalp plate for easy access to cable
