Product Description

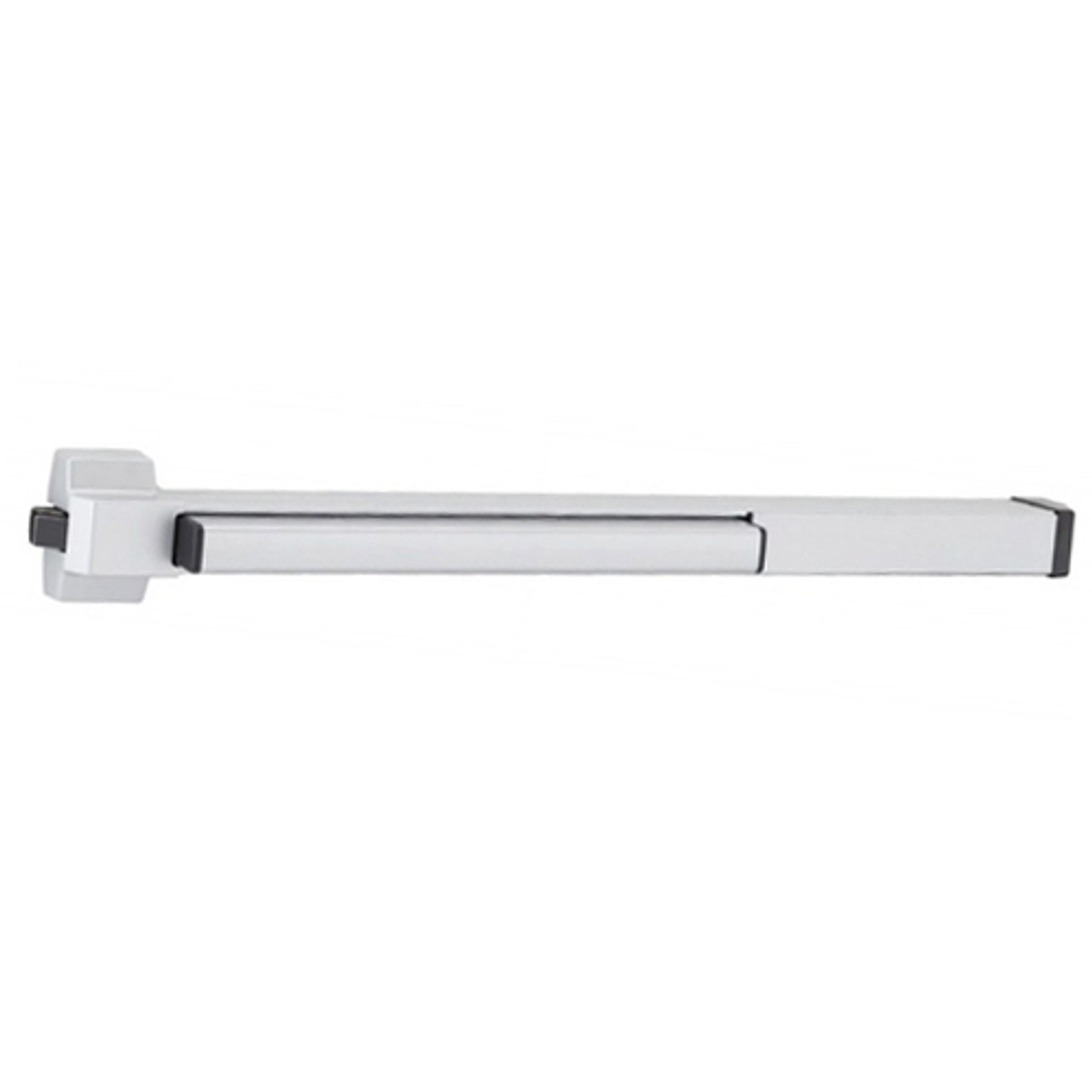

LD22EO-SP28-4 Von Duprin 22 Series Rim Mounted Exit Device in Sprayed Aluminum Finish

The Von Duprin LD22EO-SP28-4 series of Exit Device is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 22 Rim exit device is the economical alternative, incorporating a modern touchbar styling for all types of single and double doors with mullion and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

Features and Benefits:

• Sprayed Aluminum Finish
• ANSI Function: 01
• Fits door stiles as narrow as 3- 13/16" (97mm)
• Device Lengths: 4 feet (1219mm) i.e 4' Device for 2' 10" - 4' door
• Fasteners: Includes 1-3/4" (44mm) 2-1/4" (57mm) wood and metal doors
• Non-handed operation provides greater flexibility
• All 22 series exit devices are UL listed for panic hardware and are certified to ANSI A156.3, 2001, Grade1.
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Strike: 299 strike dull black included as always
• Less dogging feature
• Device centerline from finished floor: 39-13/16" (1011mm) at center of device; 39-11/16" (1008mm) with mullion
