Product Description

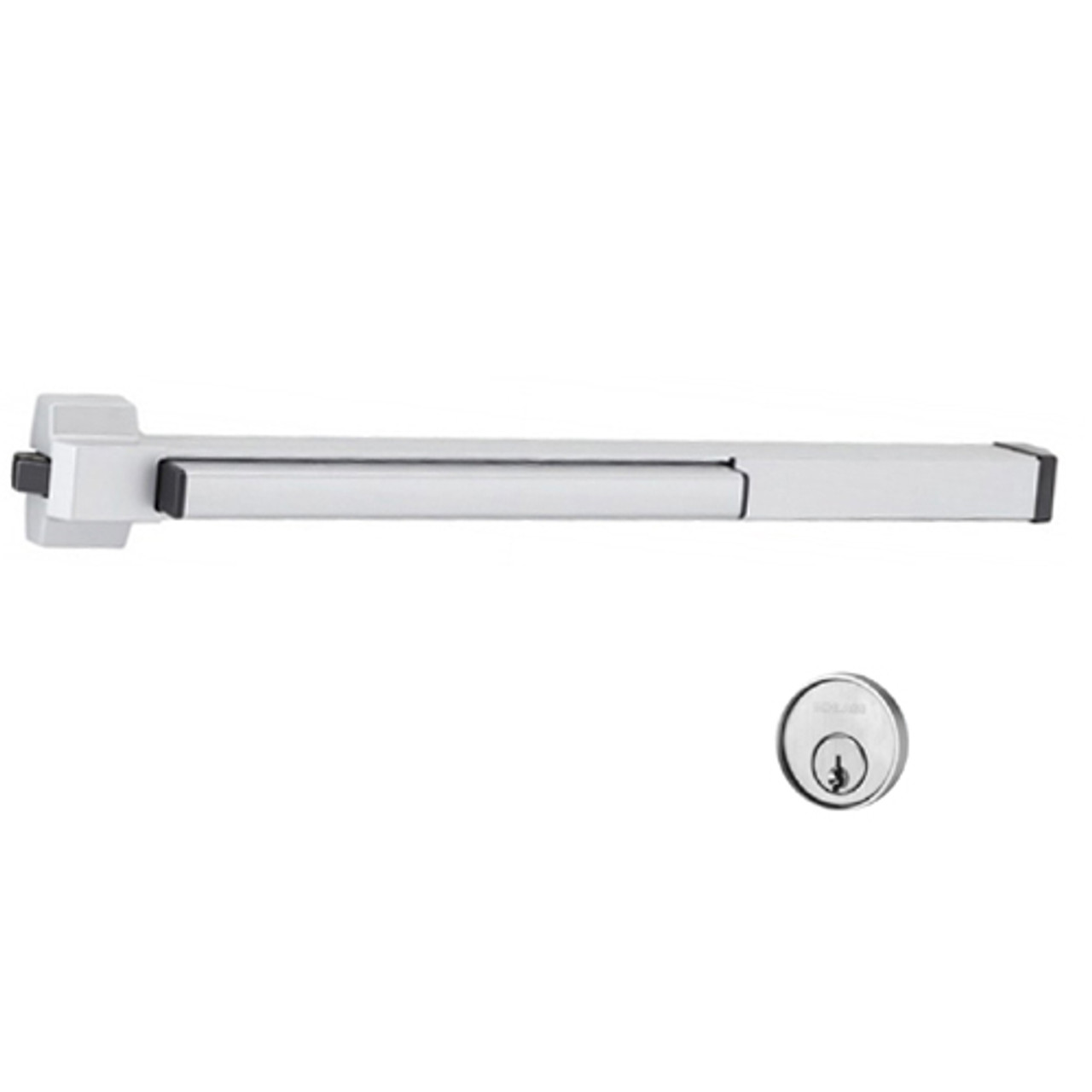

LD22NL-OP-SP28-4 Von Duprin 22 Series with 110MD/WD Night Latch Rim Mounted Exit Device in Sprayed Aluminum Finish

The Von Duprin LD22NL-OP-SP28-4 series of Exit Device is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 22 Rim exit device is the economical alternative, incorporating a modern touchbar styling for all types of single and double doors with mullion and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

Features and Benefits:

• Sprayed Aluminum Finish
• Night Latch Trim - Key Retracts Latchbolt with optional pull required
• ANSI Function: 03
• Fits door stiles as narrow as 3- 13/16" (97mm)
• Device Lengths: 4 feet (1219mm) i.e 4' Device for 2' 10" - 4' door
• Fasteners: Includes 1-3/4" (44mm) 2-1/4" (57mm) wood and metal doors
• Non-handed operation provides greater flexibility
• All 22 series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Strike: 299 strike dull black included as always
• Less dogging feature
• Meets ADA requirements if installed properly
• Includes 110MD/WD standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Cylinder must be ordered separately
• Device centerline from finished floor: 39-13/16" (1011mm) at center of device; 39-11/16" (1008mm) with mullion
