Product Description

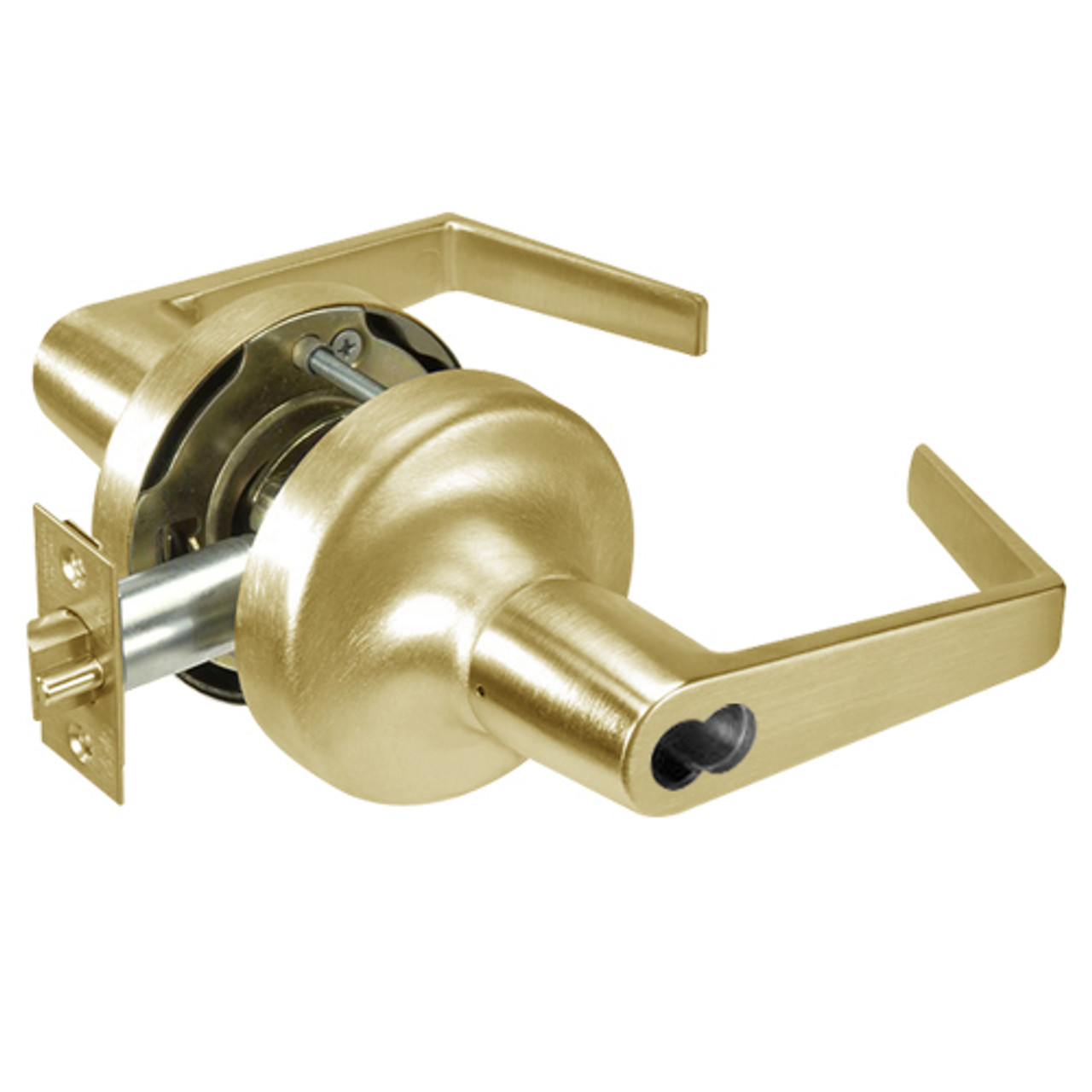

M-AU5306LN-606 Yale 5300LN Series Single Cylinder Service Station Cylindrical Lock with Augusta Lever Prepped for Medeco-ASSA IC Core in Satin Brass Finish
The Yale M-AU5306LN-606 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5300LN series cylindrical lockset feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural decor. All 5300LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5300LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 2.
Service station Lock: Deadlocking latchbolt, Either lever operates latchbolt. Pushbutton in inside lever locks outside lever. Latchbolt operated by key in outside lever, inside lever always active.
Features and Benefits:
- Satin Brass finish
- Backset: 2-3/4" standard
- Core is not included
- Door Thickness: Adjustable from 1-3/4" to 2"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: Universal for both flat and beveled door edges.
- Single cylinder
- Lever: Augusta lever design
- Prepped for Medeco/ASSA IC core, 6-pin only
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, zinc-plated, dichromated
- ANSI/BHMA: A156.2, Series 4000 Grade 2
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
