Product Description

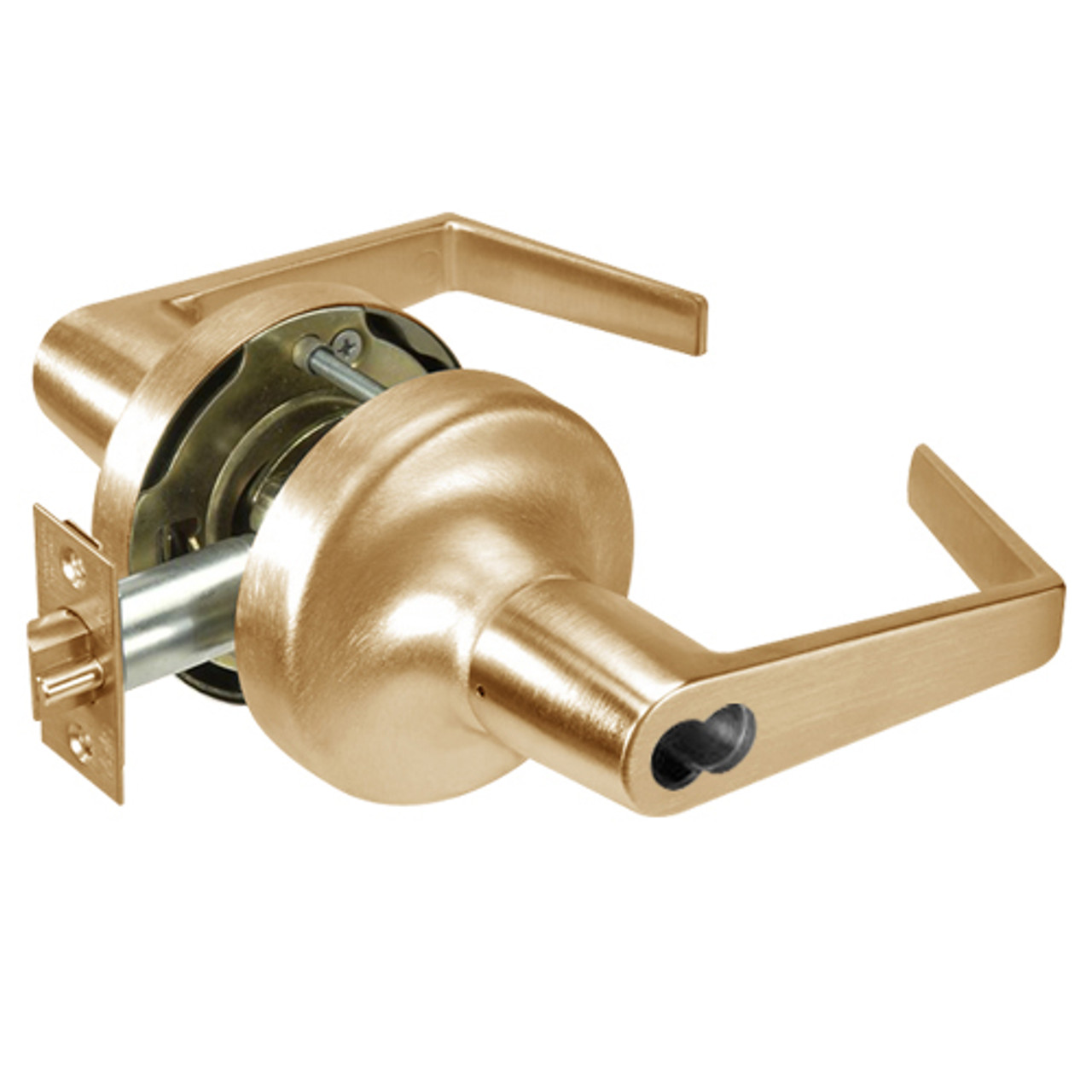

M-AU5322LN-612 Yale 5300LN Series Single Cylinder Corridor Cylindrical Lock with Augusta Lever Prepped for Medeco-ASSA IC Core in Satin Bronze Finish
The Yale M-AU5322LN-612 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5300LN series cylindrical lockset feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural decor. All 5300LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5300LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 2.
Corridor lock: Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked by inside pushbutton or key in outside lever). When locked by button, the button automatically releases when inside lever is turned or door is closed.
Features and Benefits:
- Satin Bronze finish
- Backset: 2-3/4" standard
- Core is not included
- Door Thickness: Adjustable from 1-3/4" to 2"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: Universal for both flat and beveled door edges.
- Single cylinder
- Lever: Augusta lever design
- Prepped for Medeco/ASSA IC core, 6-pin only
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, zinc-plated, dichromated
- ANSI/BHMA: A156.2, Series 4000 Grade 2
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
