Product Description

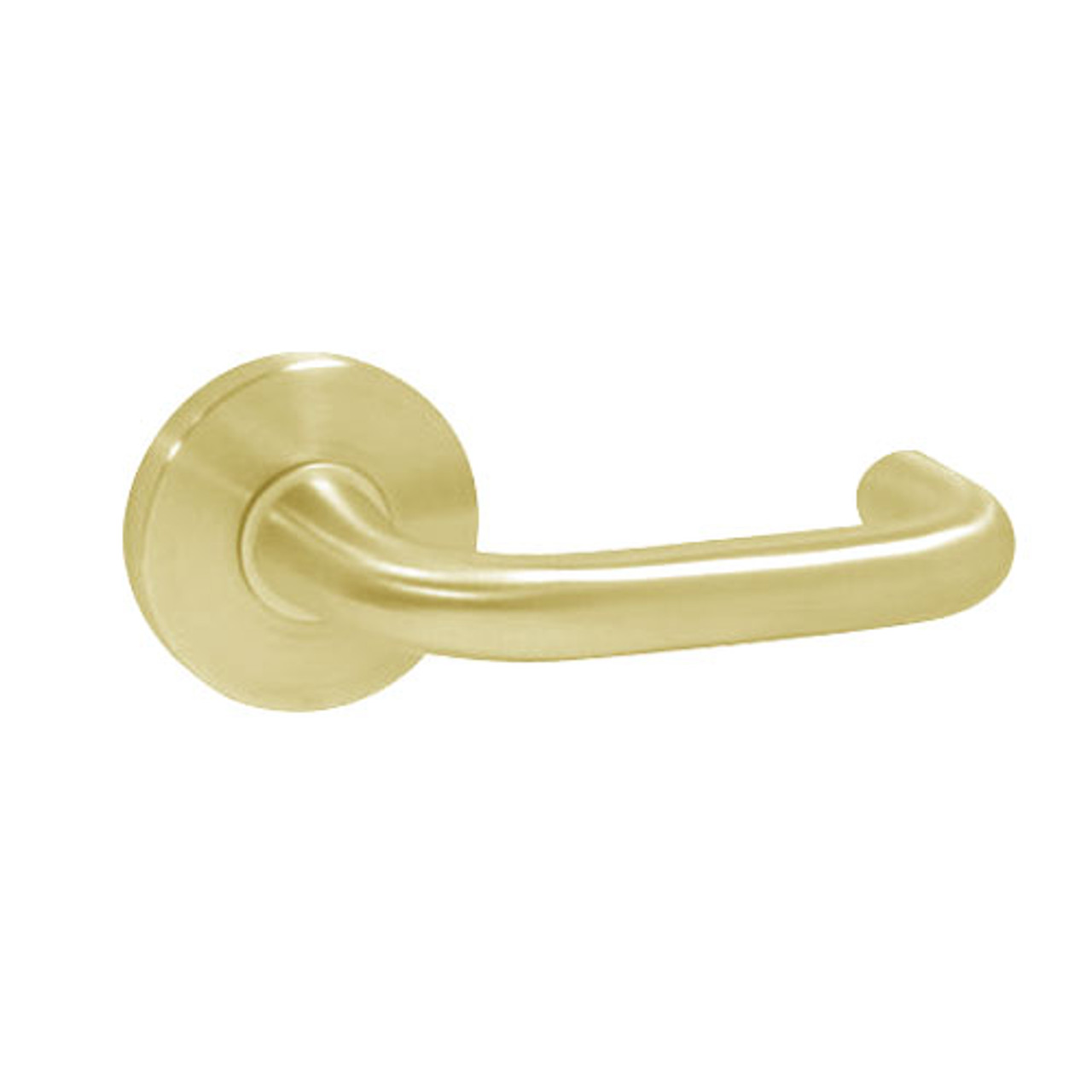

MA311-SG-606 Falcon Mortise Locks MA Series Privacy with SG Lever in Satin Brass Finish

The Falcon MA311-SG-606 Privacy function mortise lock is designed for office buildings, universities, healthcare facilities, and multi-family applications and delivers high performance at an affordable cost. Falcon is one of the toughest, most dependable locks. The MA Series provides security and is built to stand up to constant use without fail and lock makes retrofitting easy with its ability to be re-handed in the field without opening the mortise case. The MA series are certified to BHMA ANSI A156.13, Series 1000, Grade 1 operational along with UL 3 hour ratings.

Privacy, Bedroom or Bath Lock: Latch bolt operated by levers. Dead bolt operated by turn from inside and emergency release outside. Rotating inside lever retracts both bolts. Inside lever is always free for immediate egress.

Features and Benefits:

• Satin Brass finish
• Door range: 1-3/4" - 1-7/8" standard
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, with dust box
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection.
• Backset: 2-3/4" backset
• Hubs: Hardened steel
• Door thickness: Standard accommodates thickness of 1-3/8" to 2-1/2"
• ANSI: F19
• SG(Sutro-Gala) lever trim
• Non-keyed functions
• Handing: Right hand is standard; left hand optional. Reversible in the field.
