Product Description

MA381P-DG-626 Falcon Mortise Locks MA Series Apartment/Exit with DG Lever in Satin Chrome Finish

The Falcon MA381P-DG-626 Apartment/Exit function mortise lock is designed for office buildings, universities, healthcare facilities, and multi-family applications and delivers high performance at an affordable cost. Falcon is one of the toughest, most dependable locks. The MA Series provides security and is built to stand up to constant use without fail and lock makes retrofitting easy with its ability to be re-handed in the field without opening the mortise case. The MA series are certified to BHMA ANSI A156.13, Series 1000, Grade 1 operational along with UL 3 hour ratings.

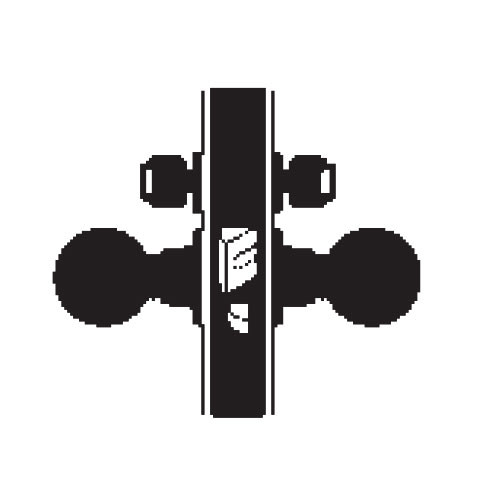

Apartment/Exit Lock: Latch bolt operated by lever from either side, except when outside lever is locked by key from inside. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. Inside lever is always free for immediate egress.

Features and Benefits:

• Satin Chrome finish
• Door range: 1-3/4" - 1-7/8" standard
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, with dust box
• Standard keys are included
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection.
• Backset: 2-3/4" backset
• Hubs: Hardened steel
• Door thickness: Standard accommodates thickness of 1-3/8" to 2-1/2"
• ANSI: F09
• DG(Dane-Gala) lever trim
• Double cylinder
• Handed: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: 6 Pin cylinder to 5 chambers standard
