Product Description

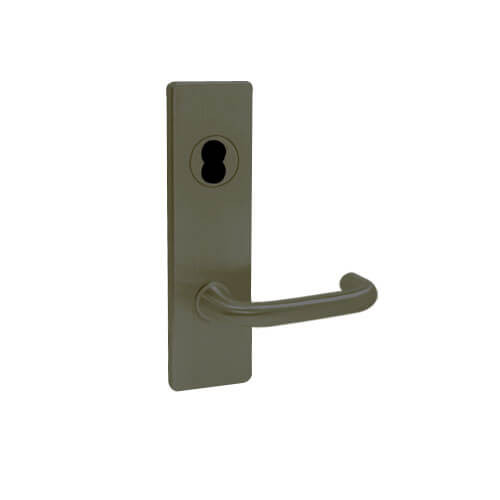

MA451BD-SN-613 Falcon Mortise Locks MA Series Hotel SN Lever with Escutcheon Style in Oil Rubbed Bronze Finish

The Falcon MA451BD-SN-613 Hotel function mortise lock is designed for office buildings, universities, healthcare facilities, and multi-family applications and delivers high performance at an affordable cost. Falcon is one of the toughest, most dependable locks. The MA Series provides security and is built to stand up to constant use without fail and lock makes retrofitting easy with its ability to be re-handed in the field without opening the mortise case. The MA series are certified to BHMA ANSI A156.13, Series 1000, Grade 1 operational along with UL 3 hour ratings.

Hotel guest lock: Latch bolt operated by key from outside or by operating inside lever. Outside lever is always inoperative. Dead bolt projected by turn from inside and all keys except emergency key are shut out. Operating inside lever retracts both bolts. Auxiliary dead latch. Inside lever is always free for immediate egress.

Features and Benefits:

• Oil Rubbed Bronze finish
• Door range: 1-3/4" - 1-7/8" standard
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, with dust box
• Core is not included
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection.
• Backset: 2-3/4" backset
• Hubs: Hardened steel
• Door thickness: Standard accommodates thickness of 1-3/8" to 2-1/2"
• ANSI: F15
• SN (Sutro-Napa) lever trim with escutcheon styles
• Single cylinder
• Handed: Right hand is standard; left hand optional. Reversible in the field.
• Prepped for small format interchangeable core, not included
• No keys or core is included with this lock, must be purchased separately
