MA541BD-QN-605 Falcon Mortise Locks MA Series Entry/Office QN Lever with Escutcheon Style in Bright Brass Finish

The Falcon MA541BD-QN-605 Entry/Office function mortise lock is designed for office buildings, universities, healthcare facilities, and multi-family applications and delivers high performance at an affordable cost. Falcon is one of the toughest, most dependable locks. The MA Series provides security and is built to stand up to constant use without fail and lock makes retrofitting easy with its ability to be re-handed in the field without opening the mortise case. The MA series are certified to BHMA ANSI A156.13, Series 1000, Grade 1 operational along with UL 3 hour ratings.

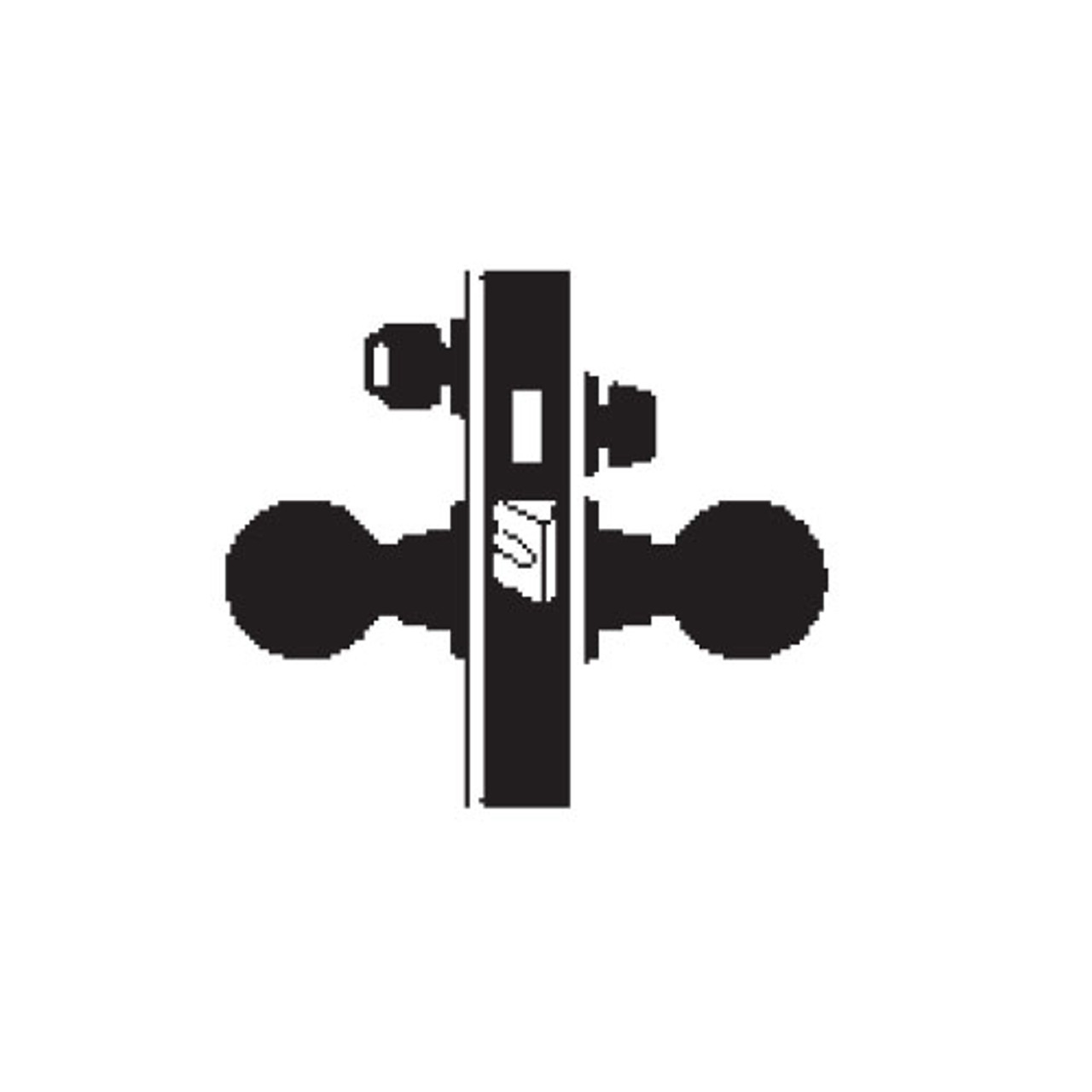

Entry/Office lock: Latchbolt retractedby lever from either side. Deadbolt thrown or retracted by key outside or thumbturn inside.

Features and Benefits:

• Bright Brass finish
• Door range: 1-3/4" - 1-7/8" standard
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, with dust box
• Core is not included
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
• Backset: 2-3/4" backset
• Hubs: Hardened steel
• Door thickness: Standard accommodates thickness of 1-3/8" to 2-1/2"
• ANSI: F21
• QN (Quantum-Napa) lever trim with escutcheon styles
• Single cylinder
• Handed: Right hand is standard; left hand optional. Reversible in the field.
• Prepped for small format interchangeable core, not included
• No keys or core is included with this lock, must be purchased separately
