Product Description

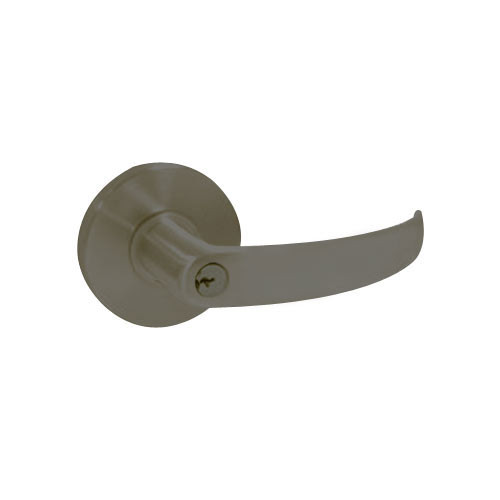

MA621P-QG-613 Falcon Mortise Locks MA Series Front Door with QG Lever in Oil Rubbed Bronze Finish

The Falcon MA621P-QG-613 Front Door function mortise lock is designed for office buildings, universities, healthcare facilities, and multi-family applications and delivers high performance at an affordable cost. Falcon is one of the toughest, most dependable locks. The MA Series provides security and is built to stand up to constant use without fail and lock makes retrofitting easy with its ability to be re-handed in the field without opening the mortise case. The MA series are certified to BHMA ANSI A156.13, Series 1000, Grade 1 operational along with UL 3 hour ratings.

Front Door: Latch bolt is operated by lever from either side, except when outside lever is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. Inside lever is always free for immediate egress.

Features and Benefits:

• Oil Rubbed Bronze finish
• Door range: 1-3/4" - 1-7/8" standard
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, with dust box
• Standard keys are included
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection.
• Backset: 2-3/4" backset
• Hubs: Hardened steel
• Door thickness: Standard accommodates thickness of 1-3/8" to 2-1/2"
• ANSI: F08
• QG(Quantum-Gala) lever trim
• Single cylinder
• Handed: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: 6 Pin cylinder to 5 chambers standard
