Product Description

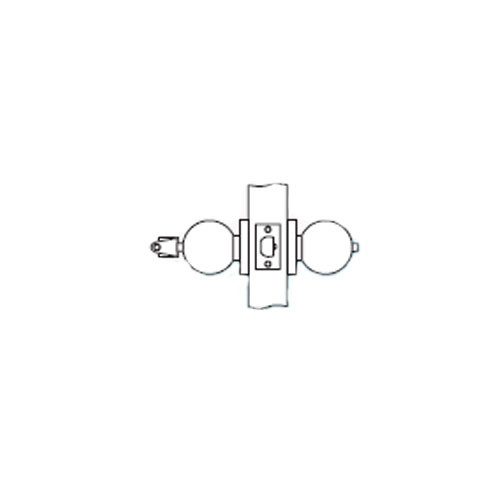

MK13-BD-10B Arrow Lock MK Series Cylindrical Locksets Single Cylinder for Exterior with BD Knob in Oil Rubbed Bronze Finish

The Arrow Lock MK13-BD-10B MK Series offers the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. This series are certified to BHMA A156.2, Series 4000, Grade 2, UL Listed.

Exterior: Dead locking latch bolt operated by knob from either side except when outside knob is locked by push button inside. When outside knob is locked, operating key in outside knob or operating inside knob unlocks push button and retracts latch bolt. Closing door does not release push button.

Features and Benefits:

• Oil Rubbed Bronze finish
• Strike: T-strike, 1-1/8" x 2-3/4" standard
• Latch: 2-3/4" backset, 1-1/8" front standard
• Keyed on one side only
• Non-handed
• ANSI: F82
• BD Knob-B wrought, Rose-D wrought
• Cylinder: 6-pin, keyed 5, solid brass, 2 brass keys standard
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
