Product Description

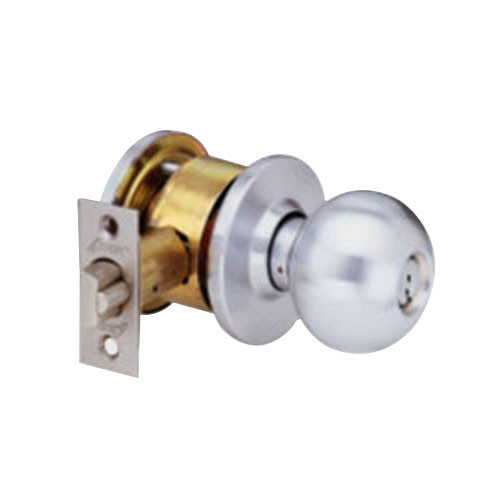

MK18-TA-26D Arrow Lock MK Series Cylindrical Locksets Single Cylinder for Communicating Classroom with TA Knob in Satin Chromium Finish

The Arrow Lock MK18-TA-26D MK Series offers the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. This series are certified to BHMA A156.2, Series 4000, Grade 2, UL Listed.

Communicating classroom: Dead locking latch bolt operated by knob one side only except when knob is locked by key. Non removable blank trim outside.

Features and Benefits:

• Satin Chromium finish
• Strike: T-strike, 1-1/8" x 2-3/4" standard
• Latch: 2-3/4" backset, 1-1/8" front standard
• Keyed on one side only
• Non-handed
• ANSI: F113
• TA Knob-T wrought, Rose-A wrought
• Cylinder: 6-pin, keyed 5, solid brass, 2 brass keys standard
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
