Product Description

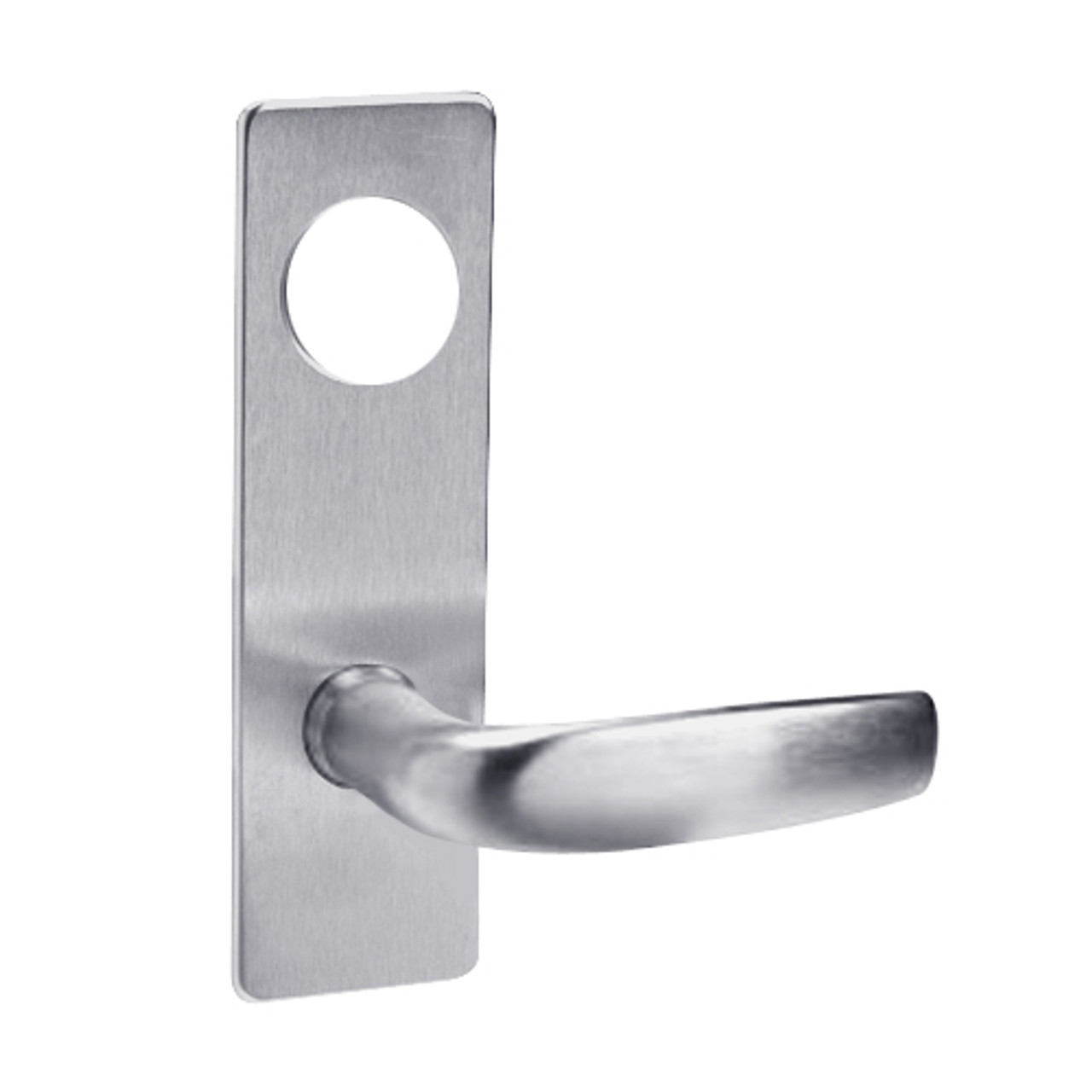

ML2002-CSN-626 Corbin Russwin ML2000 Series Mortise Classroom Intruder Locksets with Citation Lever in Satin Chrome Finish

The Corbin ML2002-CSN-626 Classroom Intruder function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

Classroom Intruder: Latchbolt by grip either side, unless outside grip is locked by key either side. Outside grip locked or unlocked by cylinder either side. Auxiliary latch deadlocks latchbolt.

Features and Benefits:

• Satin Chrome finish
• Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
• Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
• Backset: 2-3/4"
• Handing: Field reversible
• Double cylinder
• 6-pin cylinder, L4 keyway standard
• Two nickel silver keys are included
• Citation lever trim (CSN)
• Lever: Cast; Escutcheon: Wrought
• Escutcheon: N Escutcheon (2-1/4" Wrought)
• Door thickness: 1-3/4" (44mm) standard
• Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
