Product Description

ML2024-DSF-619-CL7-RH Corbin Russwin ML2000 Series IC 7-Pin Less Core Mortise Entrance Locksets with Dirke Lever in Satin Nickel Finish

The Corbin ML2024-DSF-619-CL7-RH office function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

Entrance: Latchbolt by grip* either side when deadbolt is retracted. Deadbolt by key outside or by thumbturn grip inside. Non-panic release. No simultaneous deadbolt and latch retraction.

Features and Benefits:

• Satin Nickel finish
• Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
• Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
• Backset: 2-3/4"
• Handing: Right Handed
• Single cylinder
• 7-pin interchangeable core
• Core is not included

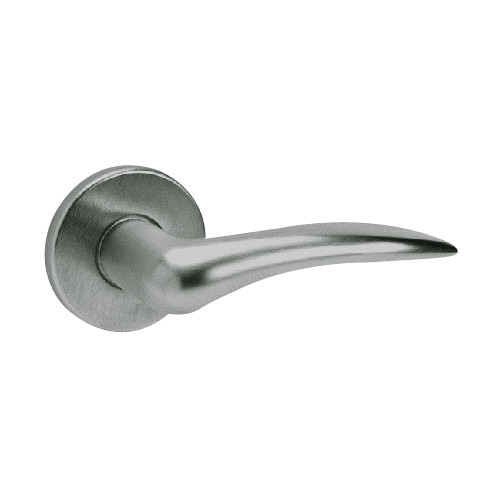

• Dirke lever trim (DSF)
• Lever: Cast; Rose: Cast
• Rose: F- Rose
• Door thickness: 1-3/4" (44mm) standard
• Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
