Product Description
ML2029-DSF-629-LC-RH Corbin Russwin ML2000 Series Mortise Hotel Locksets with Dirke Lever and Deadbolt in Bright Stainless Steel Finish
The Corbin ML2029-DSF-629-LC-RH hotel function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

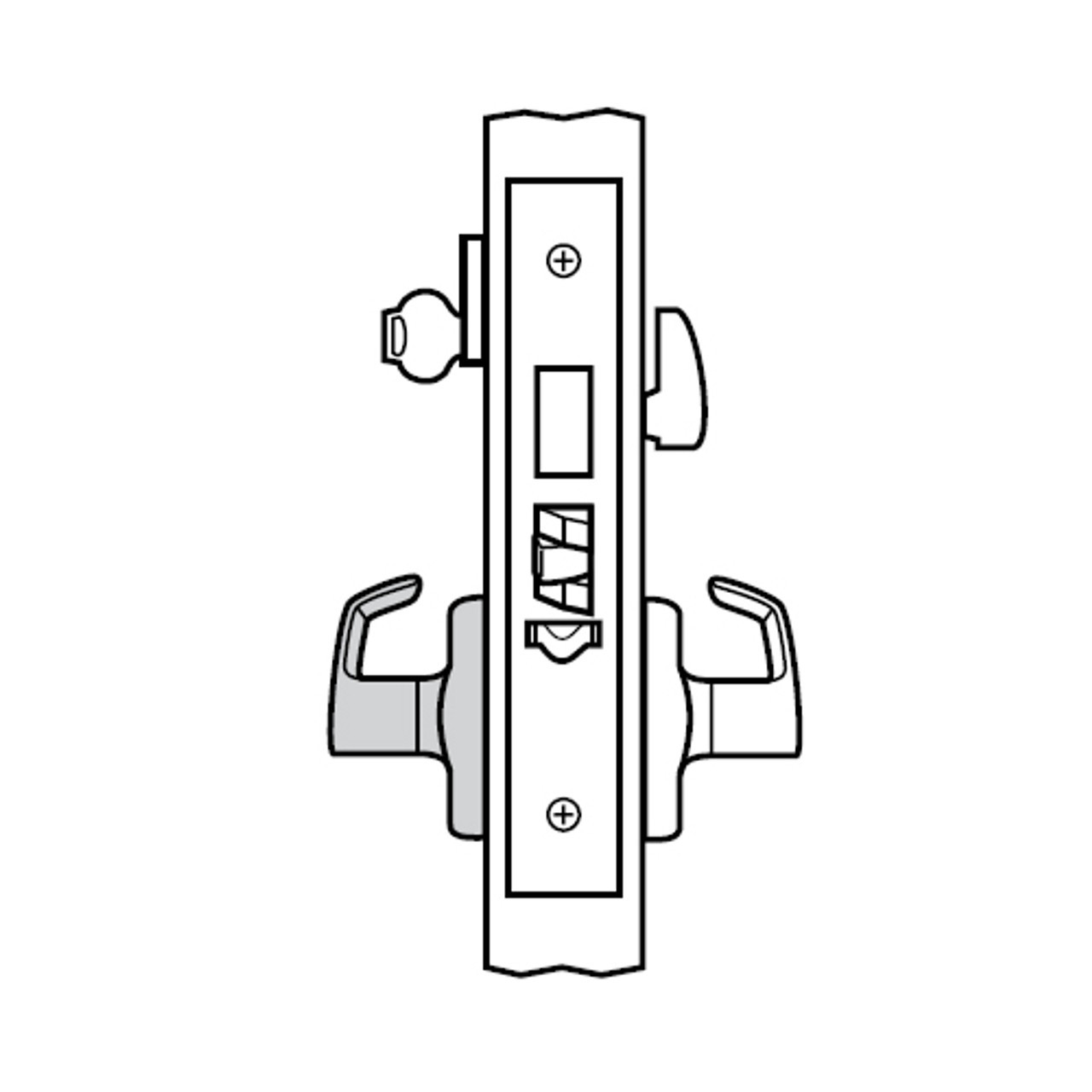

Hotel lock: Latchbolt by grip inside and by guest key or master key outside. Outside grip aDSFys rigid. Deadbolt by thumbturn grip inside or by emergency key outside.Inside grip simultaneously retracts latchbolt and deadbolt. Emergency key shuts out all other keys. Auxiliary latch deadlocks latchbolt.
Features and Benefits:
- Bright Stainless Steel finish
- Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
- Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
- Backset: 2-3/4"
- Handing: Right Handed
- Single cylinder with deadbolt
- Cylinder is not included

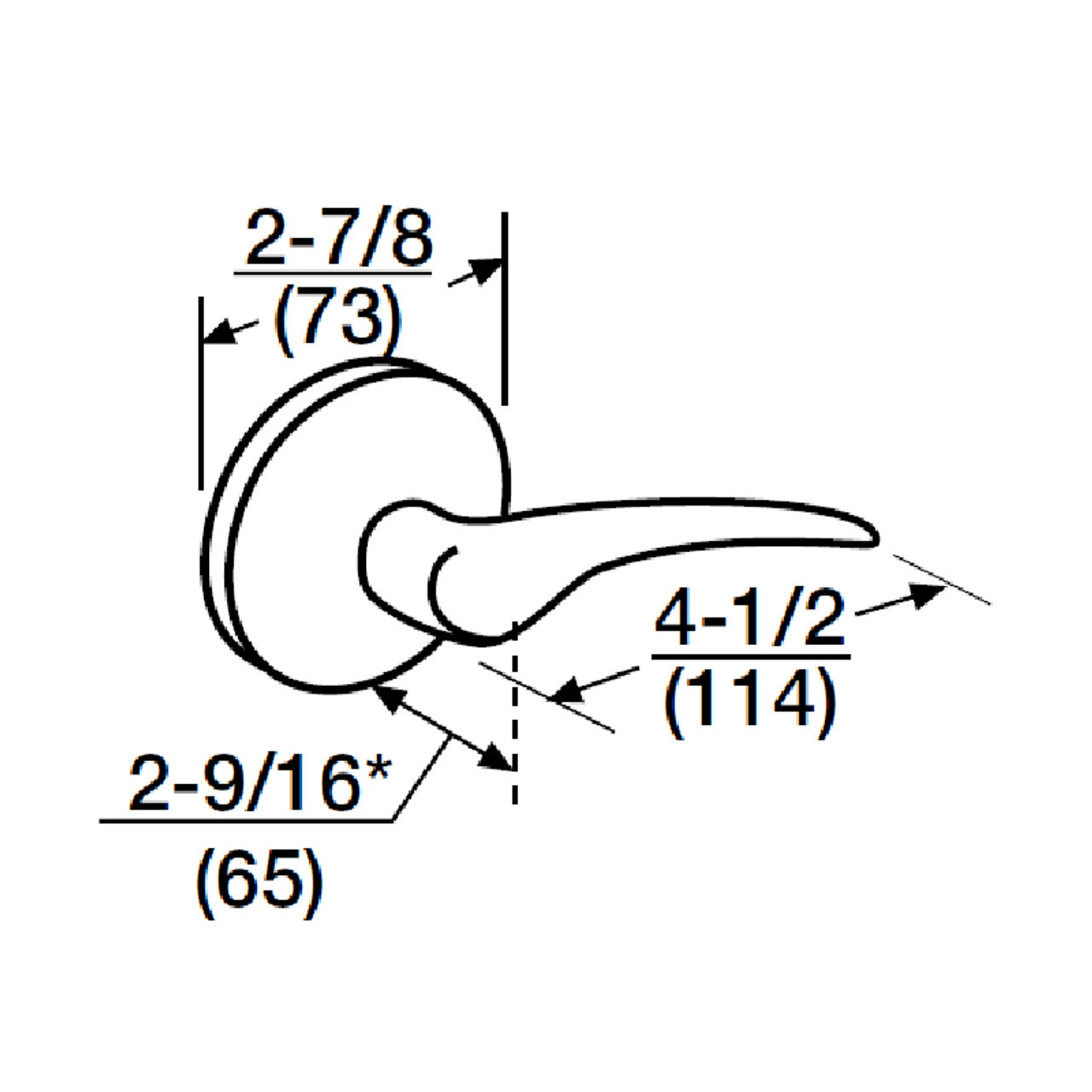

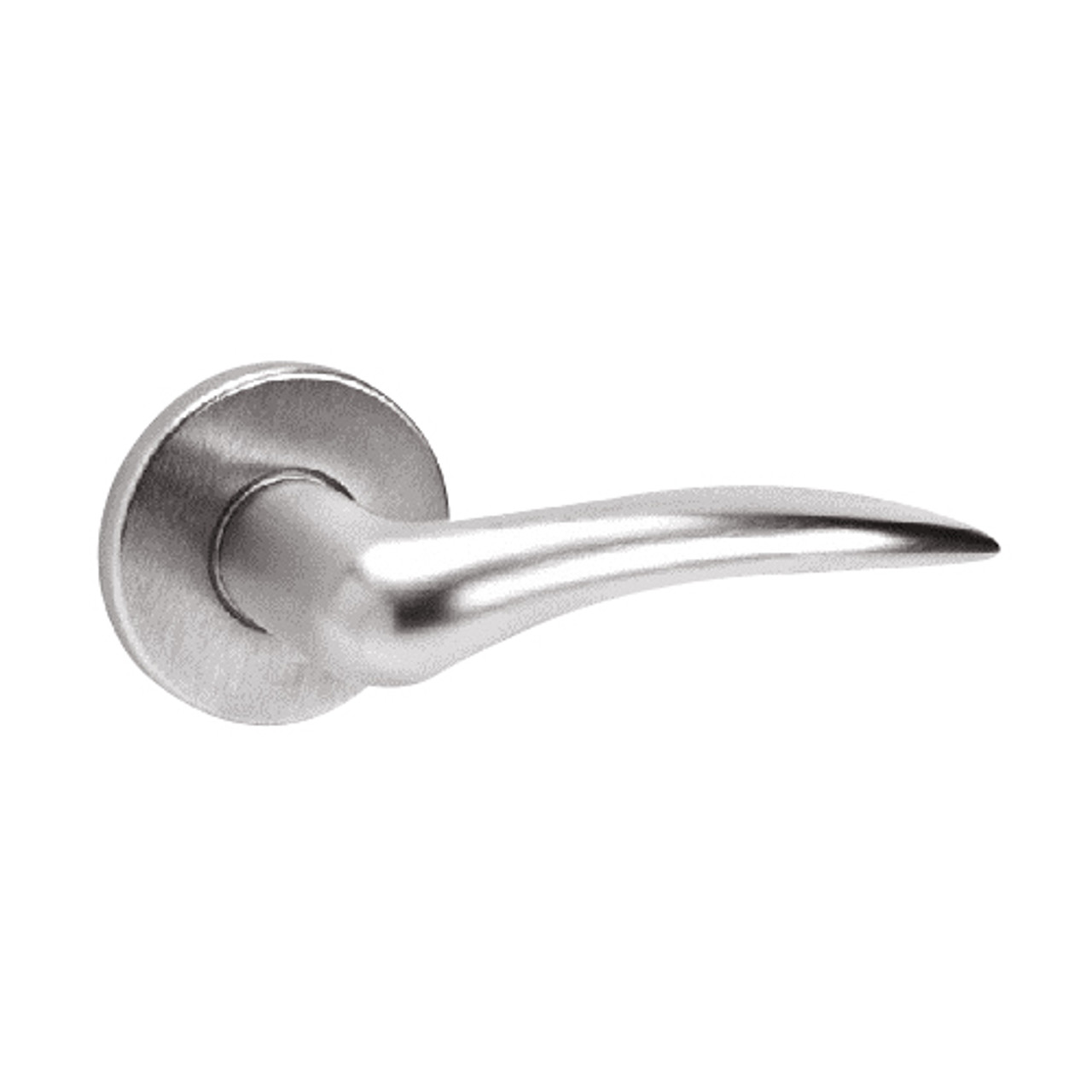

- Dirke lever trim (DSF)
- Lever: Cast; Rose: Cast
- Rose: F- Rose
- Door thickness: 1-3/4" (44mm) standard
- Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
