Product Description

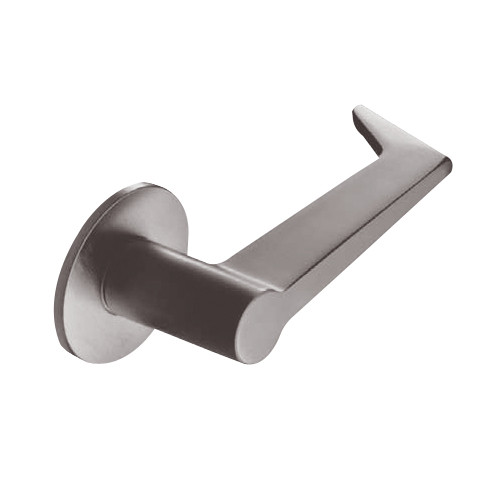

ML2032-ESF-630 Corbin Russwin ML2000 Series Mortise Institution Locksets with Essex Lever in Satin Stainless Finish

The Corbin ML2032-ESF-630 Institution function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

Institution lock: Latchbolt by key either side. Both grips always rigid. Auxiliary latch deadlocks latchbolt.

Features and Benefits:

• Satin Stainless finish
• Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
• Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
• Backset: 2-3/4"
• ANSI No: F30
• Handing: None handed
• Double cylinder
• 6-pin cylinder, L4 keyway standard
• Two nickel silver keys are included
• Essex lever trim (ESF)
• Lever: Cast; Rose: Cast
• Door thickness: 1-3/4" (44mm) standard
• Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"

*Note: This function does not allow free egress and can pose a life safety hazard in event of an emergency. Installation should be in accordance with approved codes only.
