Product Description

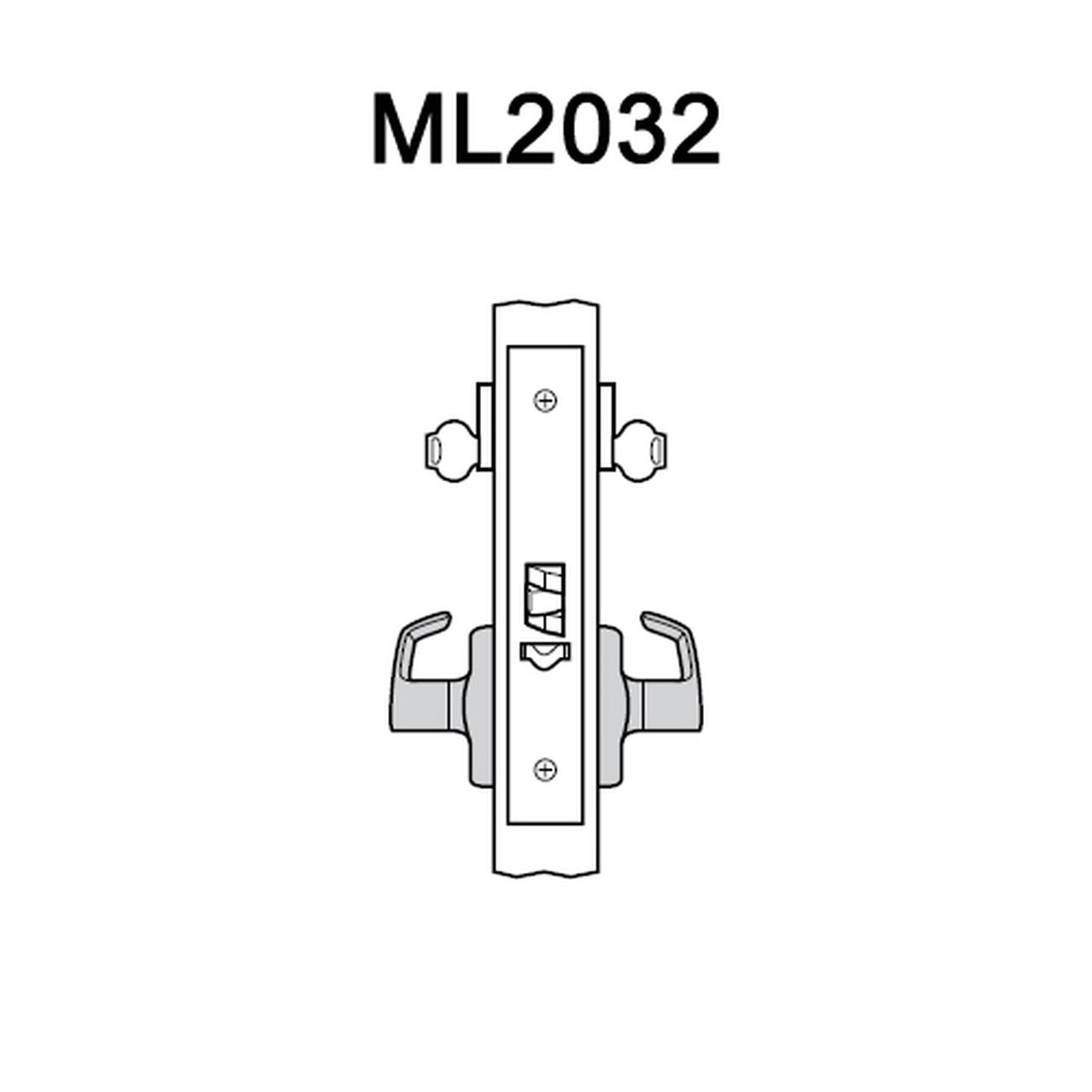

ML2032-NSM-613-CL6 Corbin Russwin ML2000 Series IC 6-Pin Less Core Mortise Institution Locksets with Newport Lever in Oil Rubbed Bronze Finish
The Corbin ML2032-NSM-613-CL6 institution function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.
Institution lock: Latchbolt by key either side. Both grips aNSMys rigid. Auxiliary latch deadlocks latchbolt.
Features and Benefits:
- Oil Rubbed Bronze finish
- Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
- Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
- Backset: 2-3/4"
- Handing: Field reversible
- Double cylinder
- 6-pin interchangeable core
- Core is not included

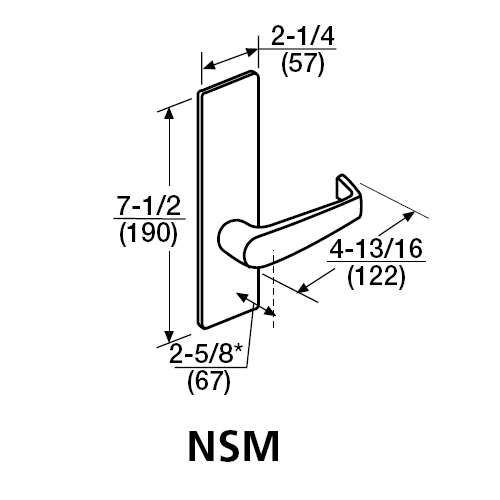

- Newport lever trim (NSM)
- Lever: Cast; Escutcheon: Wrought
- Escutcheon: M Escutcheon (2-1/4" Wrought)
- Door thickness: 1-3/4" (44mm) standard
- Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
