Product Description

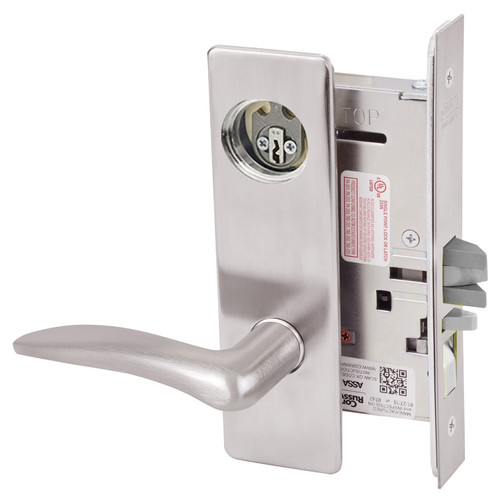

ML2051-DSM-630-CL6-RH Corbin Russwin ML2000 Series IC 6-Pin Less Core Mortise Office Locksets with Drike Lever in Satin Stainless Finish

The Corbin ML2051-DSM-630-CL6-RH office function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

Office: Latchbolt by key when outside grip locked by toggle action stop. Latchbolt by grip either side, unless outside grip is locked by toggle-action stop.

Features and Benefits:

• Satin Stainless finish
• Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
• Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
• Backset: 2-3/4"
• Handing: Right Handed
• Single cylinder
• 6-pin interchangeable core
• Core is not included

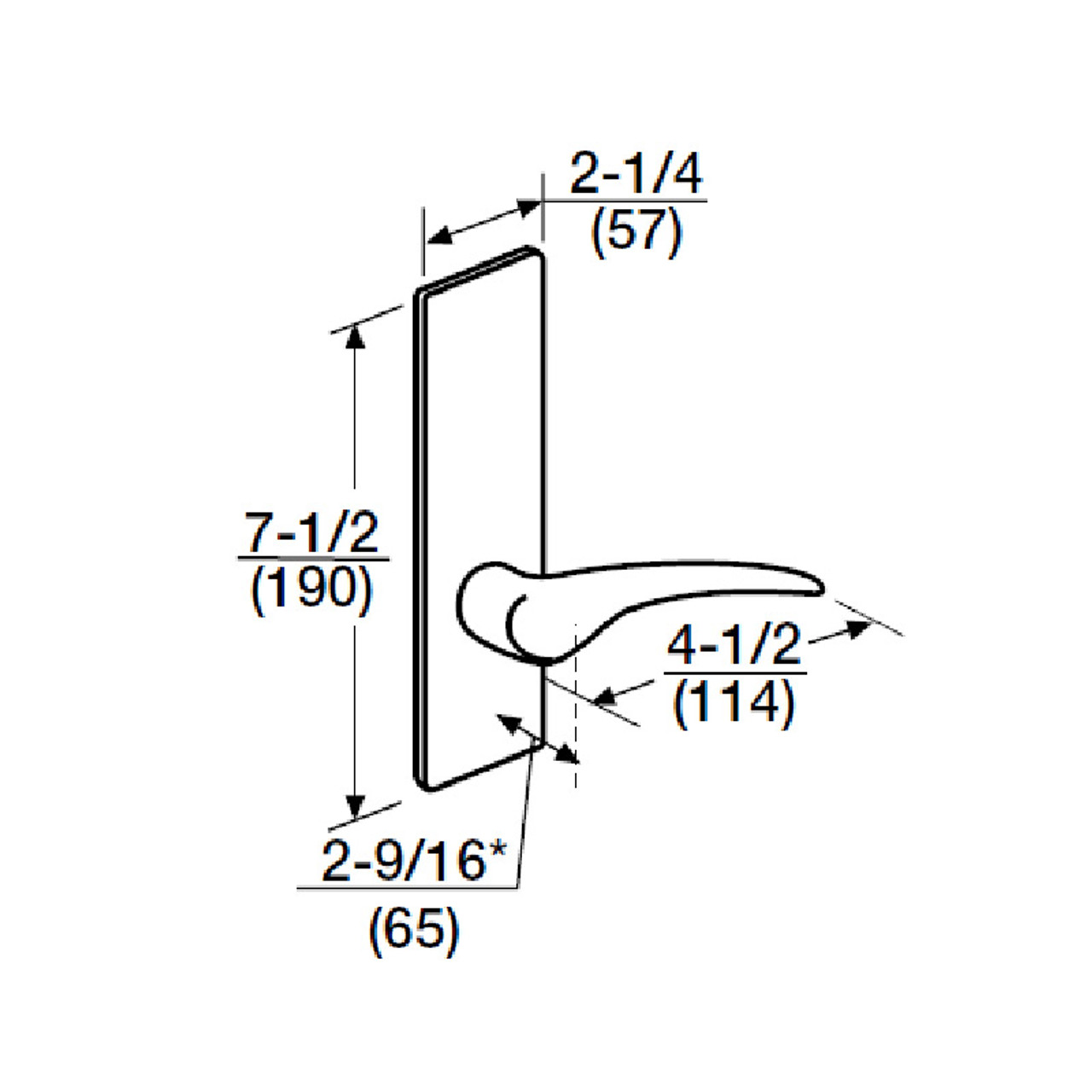

• Drike lever trim (DSM)
• Lever: Cast; Escutcheon: Wrought
• Escutcheon: M Escutcheon (2-1/4" Wrought)
• Door thickness: 1-3/4" (44mm) standard
• Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
