Product Description

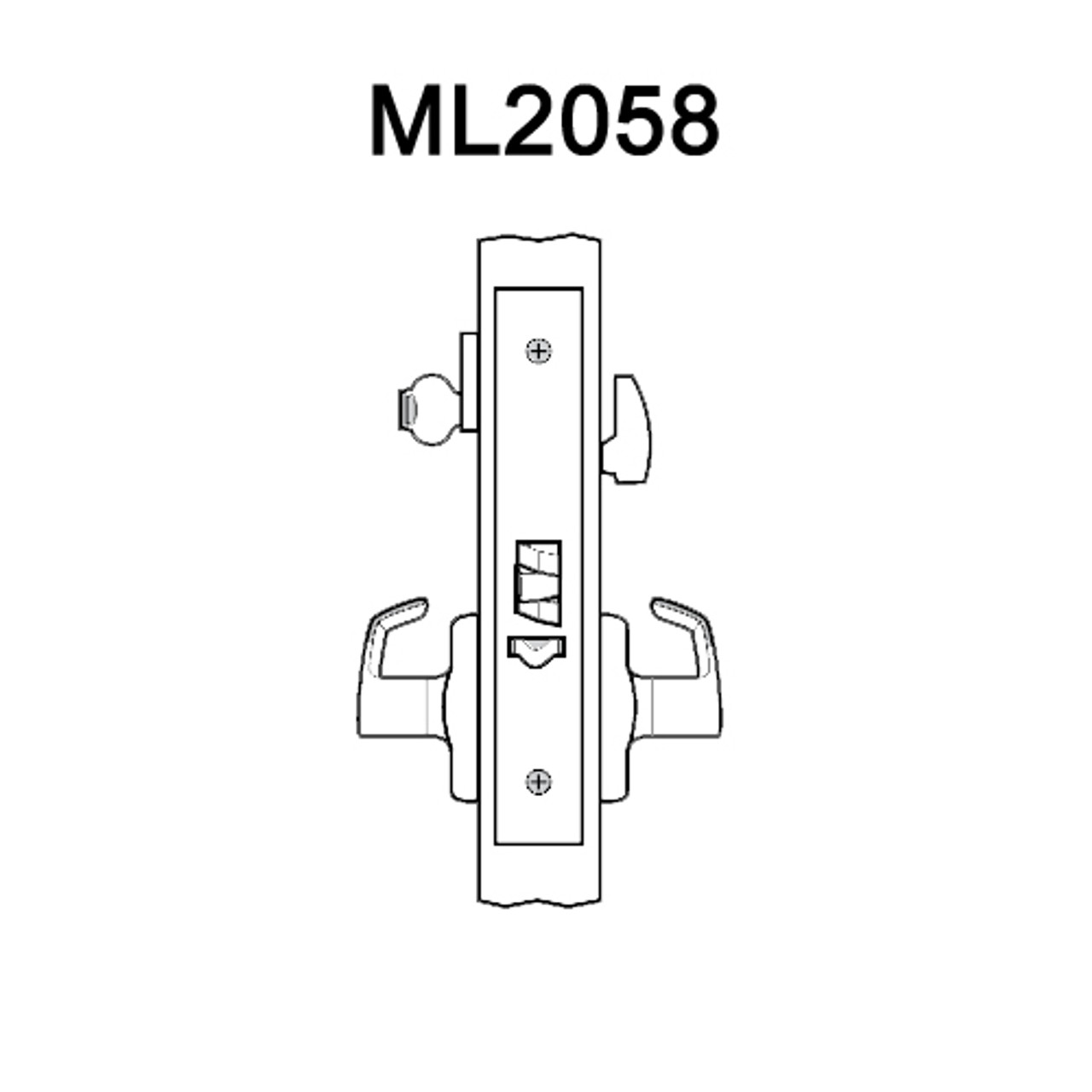

ML2058-NSR-613-CL7 Corbin Russwin ML2000 Series IC 7-Pin Less Core Mortise Entrance Holdback Locksets with Newport Lever in Oil Rubbed Bronze Finish
The Corbin ML2058-NSR-613-CL7 office function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.
Entrance holdback: Latchbolt by grip either side, unless outside grip is locked. Outside grip locked or unlocked by key or thumbturn. Latchbolt retracted by key outside when outside grip is locked. Latchbolt can be held in a retracted position by key or thumbturn, or released by key or thumbturn.
Features and Benefits:
- Oil Rubbed Bronze finish
- Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
- Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
- Backset: 2-3/4"
- Handing: Field reversible
- Single cylinder
- 7-pin interchangeable core
- Core is not included
- Newport lever trim (NSR)
- Lever: Cast; Escutcheon: Solid stainless steel; forged brass
- Escutcheon: R Escutcheon 1-3/4"
- Door thickness: 1-3/4" (44mm) standard
- Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
