Product Description

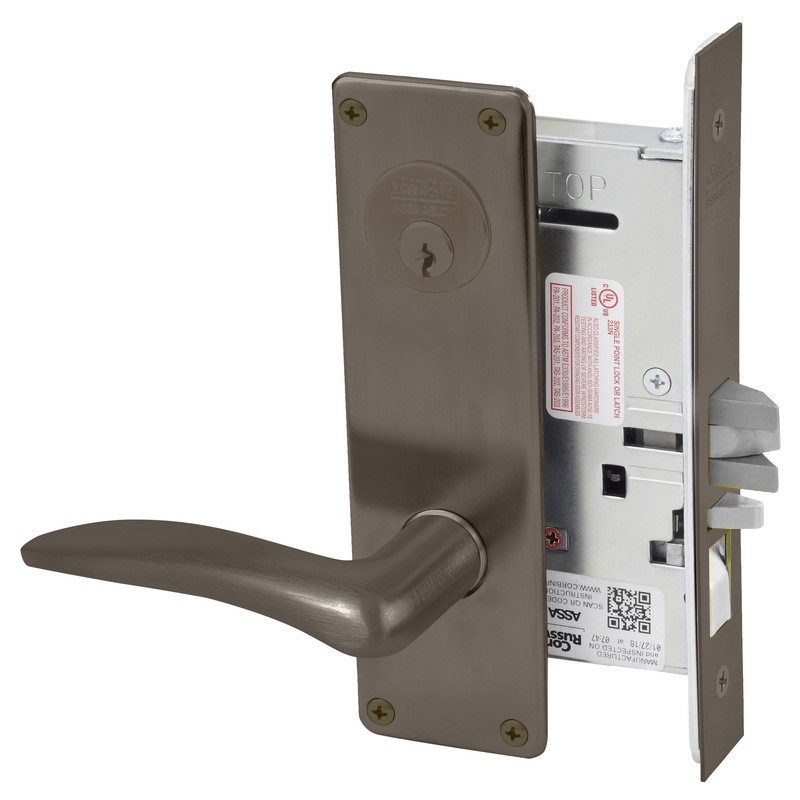

ML2068-DSN-613-LH Corbin Russwin ML2000 Series Mortise Privacy or Apartment Locksets with Drike Lever in Oil Rubbed Bronze Finish

The Corbin ML2068-DSN-613-LH Privacy or Apartment function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

Privacy or Apartment: Latchbolt by grip either side, unless outside grip is locked; Outside grip locked or unlocked by key or thumbturn; Operating inside grip, closing the door or using key unlocks outside grip; Inside grip always free.

Features and Benefits:

• Oil Rubbed Bronze finish
• Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
• Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
• Backset: 2-3/4"
• Handing: Left Handed
• Single cylinder
• 6-pin cylinder, L4 keyway standard
• Two nickel silver keys are included
• Drike lever trim (DSN)
• Lever: Cast; Escutcheon: Wrought
• Door thickness: 1-3/4" (44mm) standard
• Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
