Product Description

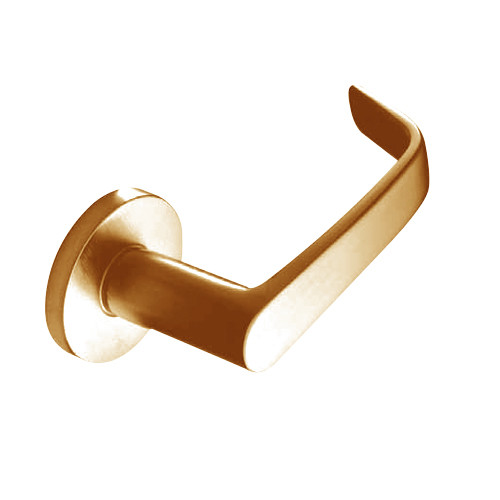

ML2069-NSB-612-M31 Corbin Russwin ML2000 Series Mortise Institution Privacy Trim Pack with Newport Lever in Satin Bronze Finish

The Corbin ML2069-NSB-612-M31 office function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

Institution privacy: Latchbolt by grip either side, except when outside is locked by thumbturn inside. Key outside retracts latch at all times, even if thumbturn is held in locked position.

Features and Benefits:

• Satin Bronze finish
• Handing: Field reversible
• Single cylinder
• Newport Lever trim (NSB)
• Lever: Cast; Rose: Cast

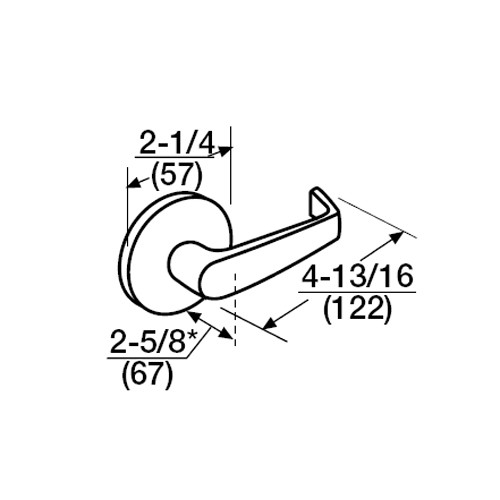

• Rose: B Rose (2-1/4" Cast)
• Door thickness: 1-3/4" (44mm) standard
• Application: Trim pack only
