Product Description
ML2073-DSA-613-M31-RH Corbin Russwin ML2000 Series Mortise Classroom Security Trim Pack with Dirke Lever and Deadbolt in Oil Rubbed Bronze Finish
The Corbin ML2073-DSA-613-M31-RH classroom security function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

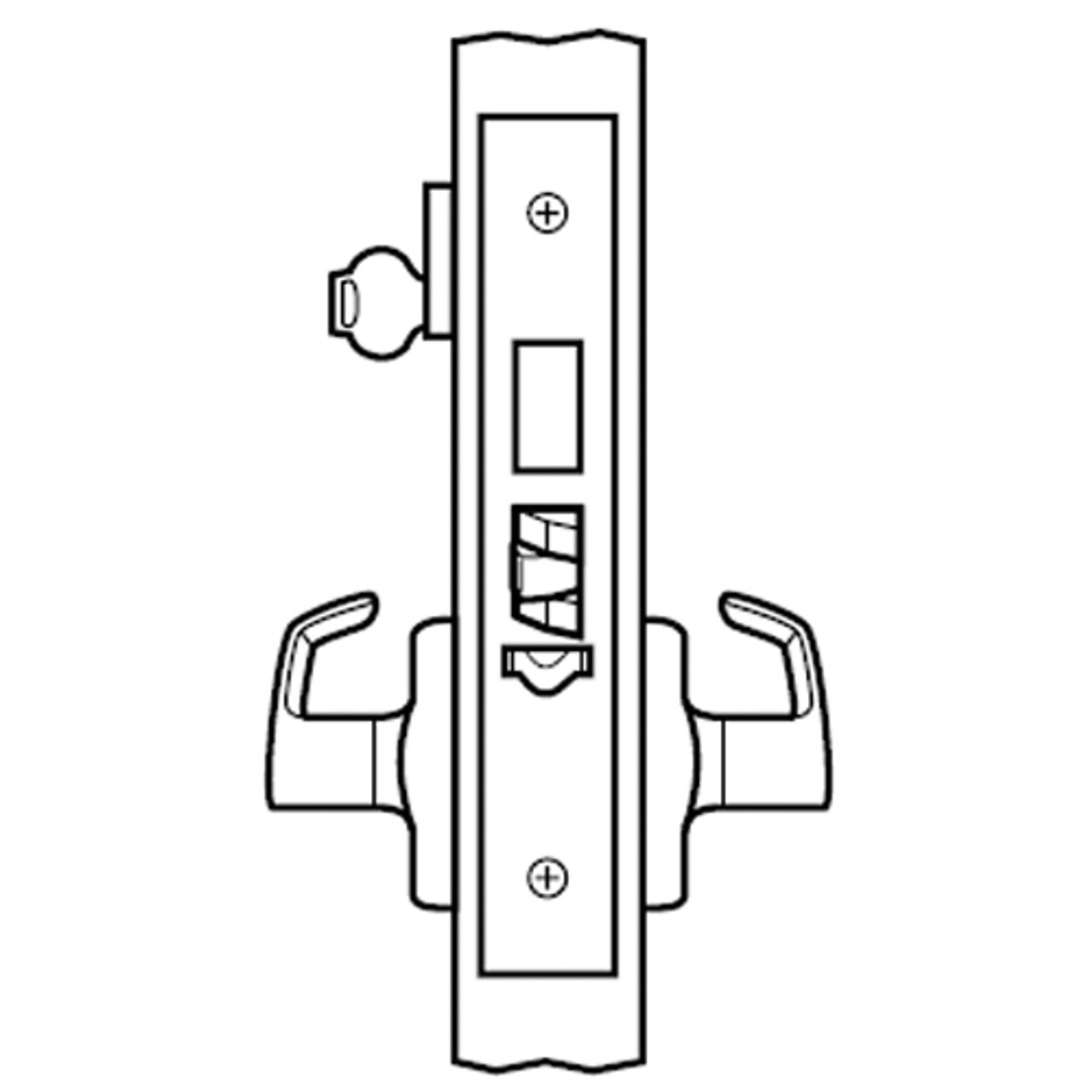

Classroom Security: Latchbolt by grip from either side unless outside grip is locked by projection of deadbolt; Deadbolt thrown or retracted by key; Inside grip simultaneously retracts latchbolt and deadbolt; outside grip remains locked; Key unlocks outside grip; outside grip remains locked unless unlocked by key; Auxiliary latch deadlocks latchbolt; Note: Indicator shows deadbolt position only
Features and Benefits:
- Oil Rubbed Bronze finish
- Handing: Right Handed
- Single cylinder with deadbolt

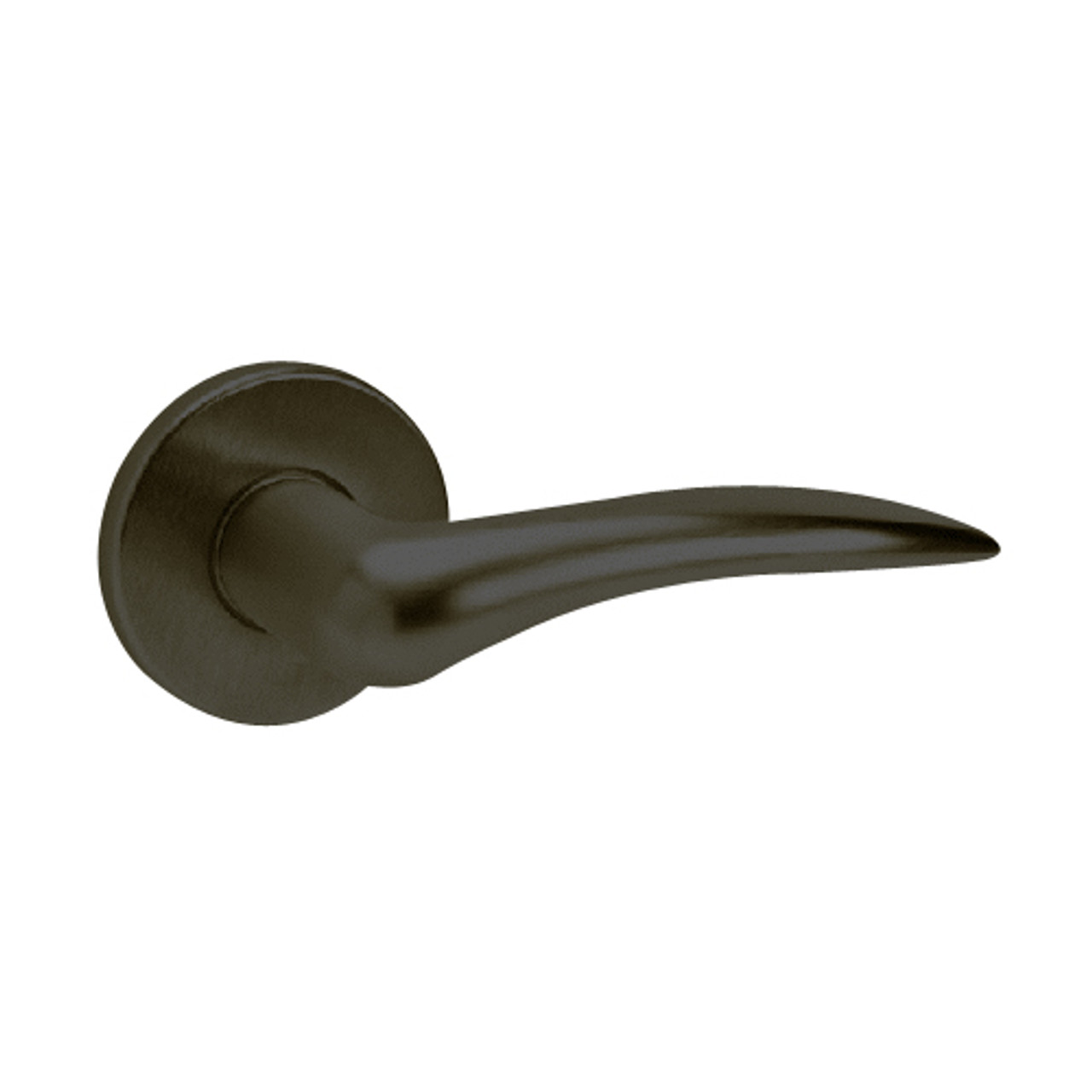

- Dirke lever trim (DSA)
- Lever: Cast; Rose: Wrought
- Rose: A Rose (2-1/4" Wrought)
- Door thickness: 1-3/4" (44mm) standard
- Application: Trim pack only
