Product Description
ML2092-CSN-619 Corbin Russwin ML2000 Series Mortise Security Institution or Utility Locksets with Citation Lever with Deadbolt in Satin Nickel Finish
The Corbin ML2092-CSN-619 security institution or utility function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

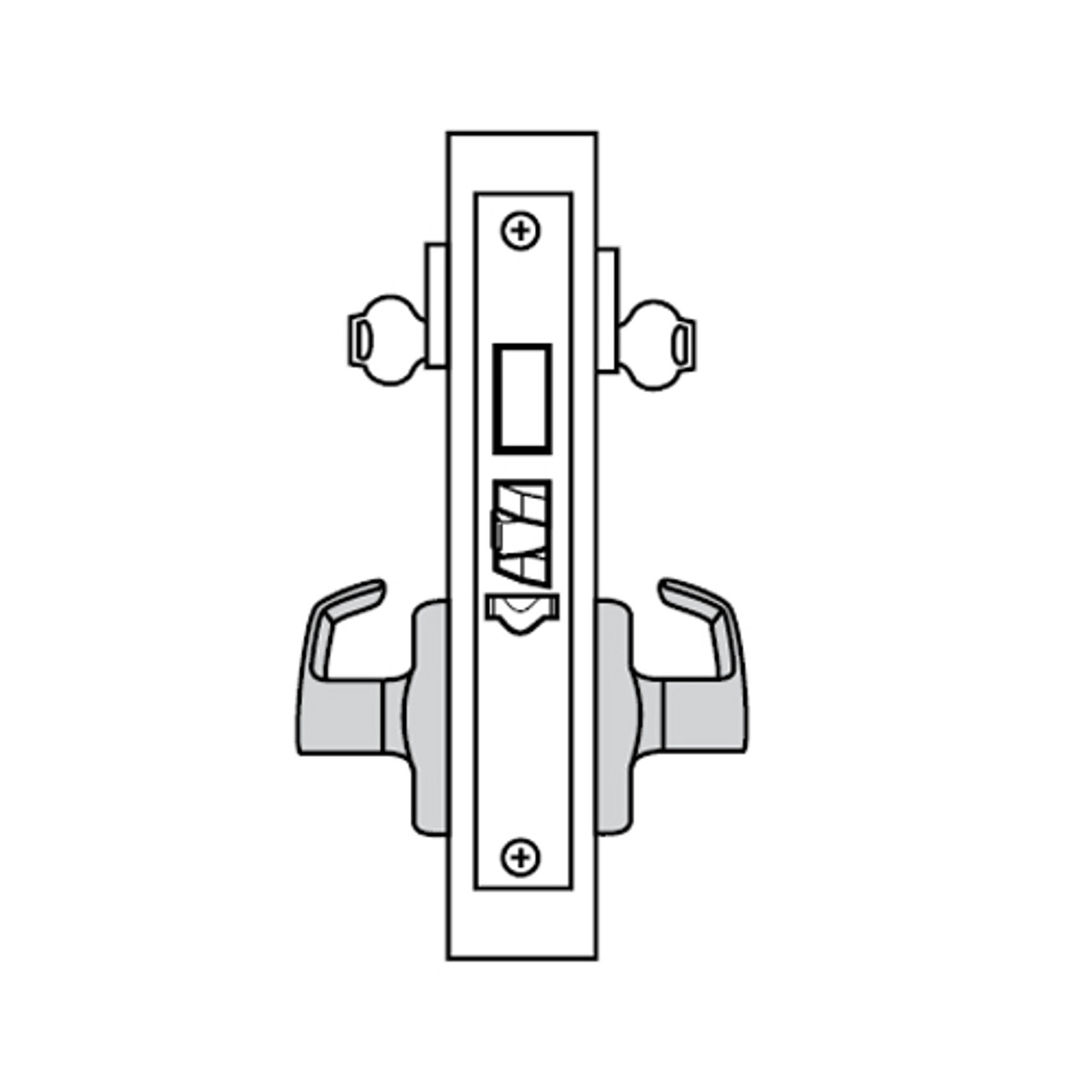

Security Institution or Utility lock: Latchbolt by key either side. Deadbolt thrown and retracted by key either side. Auxiliary latch deadlocks latchbolt. Inside and outside grips remain locked at all times.
Features and Benefits:
- Satin Nickel finish
- Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
- Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
- Backset: 2-3/4"
- Handing: Field reversible
- Double cylinder with deadbolt
- 6-pin cylinder, L4 keyway standard
- Two nickel silver keys are included

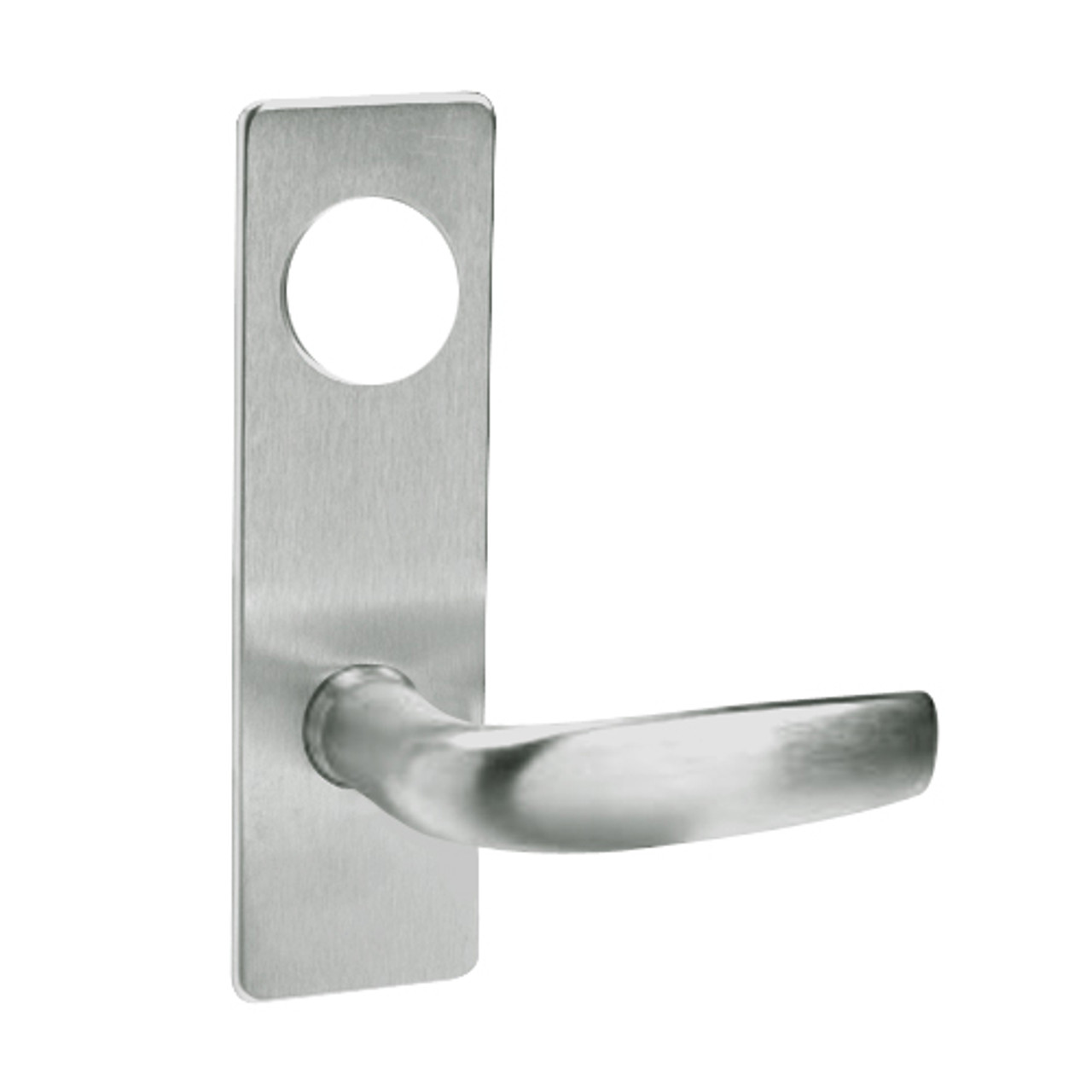

- Citation lever trim (CSN)
- Lever: Cast; Escutcheon: Wrought

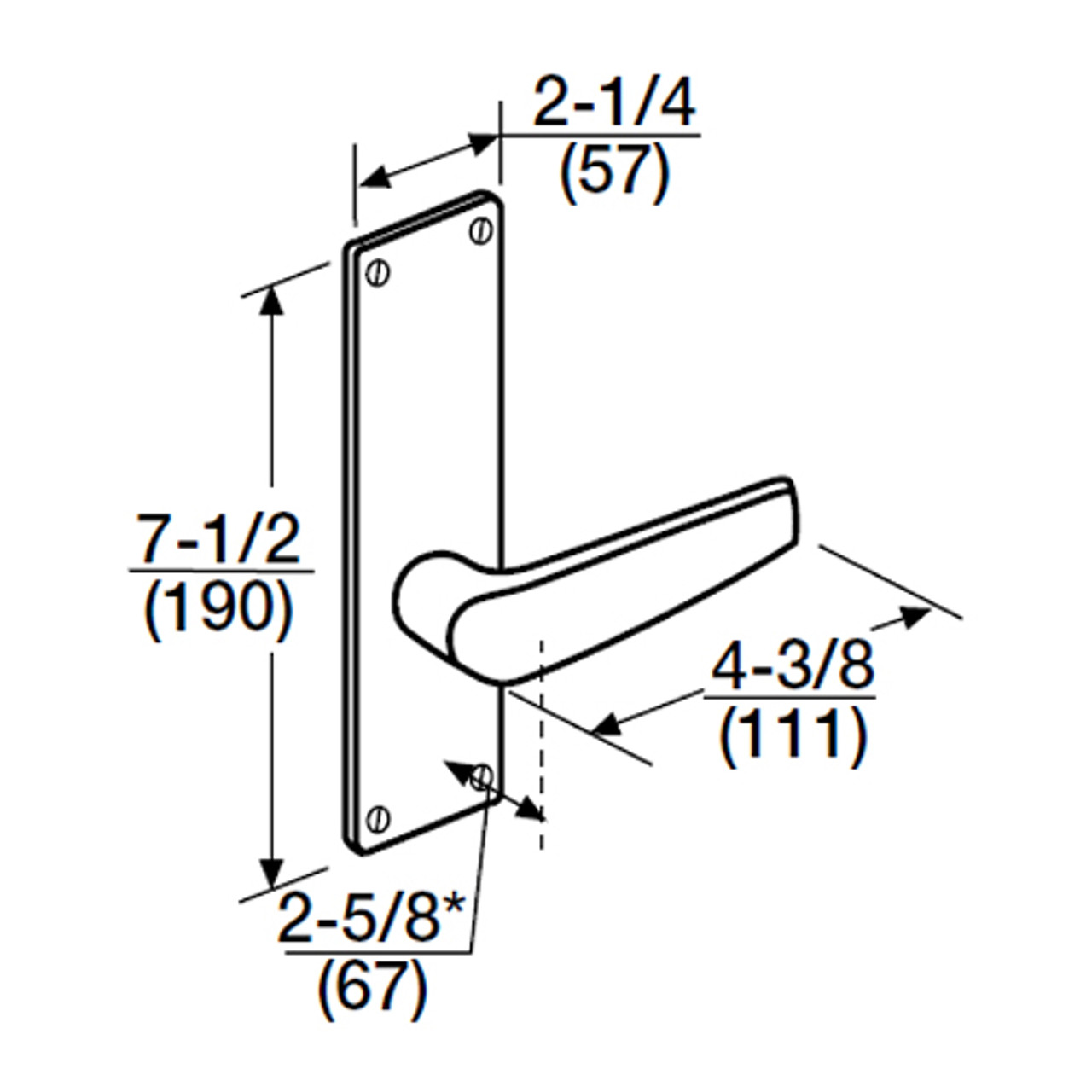

- Escutcheon: N Escutcheon (2-1/4" Wrought)
- Door thickness: 1-3/4" (44mm) standard
- Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
*Note: This function does not allow free egress and can pose a life safety hazard in event of an emergency. Installation should be in accordance with approved codes only.
