Product Description

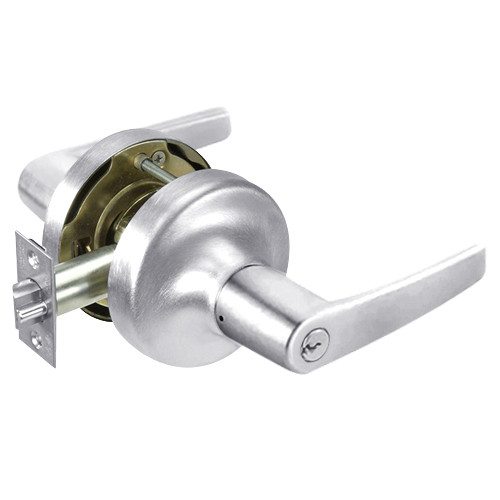

MO5321LN-625 Yale 5300LN Series Double Cylinder Communicating Cylindrical Lock with Monroe Lever in Bright Chrome Finish
The Yale MO5321LN-625 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5300LN series cylindrical lockset feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural decor. All 5300LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5300LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 2.
Communicating Lock: Used for communicating or store entrance doors. Deadlocking latchbolt. Either lever operates latchbolt (except when key in either lever locks or unlocks the lever independently of the other). Should be used only in offices or rooms with multiple entries.
Features and Benefits:
- Bright Chrome finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/4" to 2"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: Universal for both flat and beveled door edges.
- Single cylinder
- Lever: Monroe lever design
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, zinc-plated, dichromated
- ANSI/BHMA: A156.2, Series 4000 Grade 2
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
