Product Description

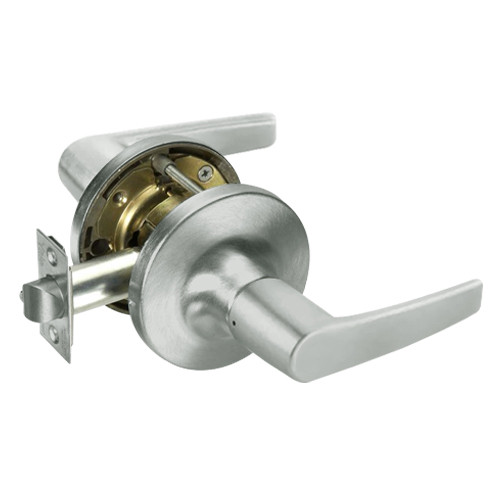

MO5430LN-619 Yale 5400LN Series Double Cylinder Utility or Institutional Cylindrical Lock with Monroe Lever in Satin Nickel Finish
The Yale MO5430LN-619 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5400LN series heavy-duty cylindrical lockset offers no compromise when it comes to rugged reliability and performance. All 5400LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5400LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 1.
Utility, Asylum or Institutional Lock: Deadlocking latchbolt. Latchbolt operated by key in lever from either side. Both levers always locked.
Features and Benefits:
- Satin Nickel finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/4" to 2-1/4"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: 2-1/4" x 1-1/8" beveled standard
- Single cylinder
- Lever: Monroe lever design
- Latchbolt: 1/2" stainless steel throw standard
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard
