Product Description

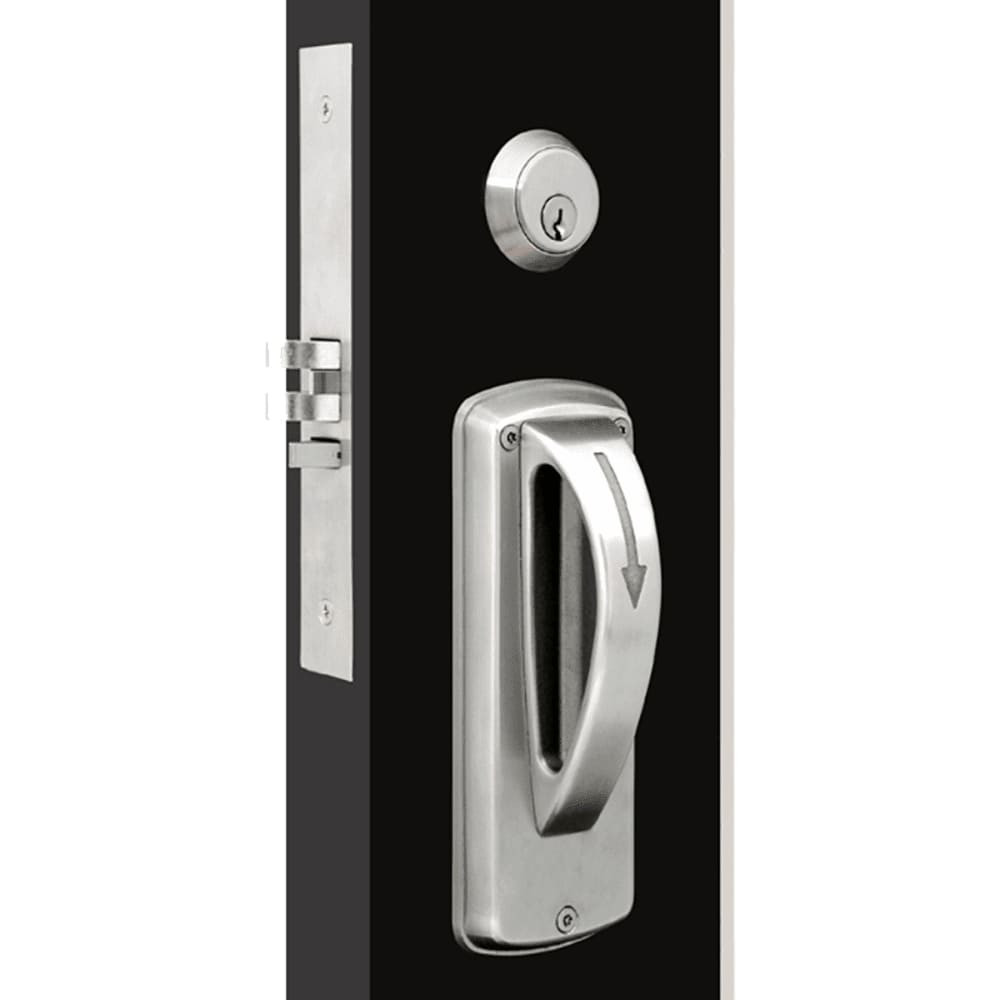

MRX-A-20-630-LHR-YLFIC TownSteel Ligature Resistant Entrance - Apartment - Dormitory with thumb turn Mortise Lock Single Cylinder with Arch Trim - Left Hand Reverse in Satin Stainless Steel Finish
The TownSteel MRX-A-20-630-LHR-YLFIC series offers one of the most comprehensive selections of ligature-resistant locks in the commercial contract hardware industry. These high-performance solutions, including the advanced ligature-resistant mortise locks, are meticulously designed to enhance safety and security in sensitive environments like behavioral healthcare facilities. With a focus on preventing self-harm and ensuring compliance with industry standards, TownSteel's ligature-resistant locks provide superior durability, reliability, and ease of use. These locks are the trusted choice for architects, contractors, and facility managers seeking the highest level of security and peace of mind in high-risk environments. Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks.
20-Apartment or Corridor: Latchbolt operated by lever from either side, except when outside lever is made inoperative by the pushbutton rocker. Deadbolt projected by key from outside and by thumbturn from inside. Key outside operated both bolts. Operating inside lever retracts both bolts outside remains locked. Latchbolt is deadlocked when outside lever is made inoperative or when deadbolt is projected. When deadbolt is retracted, lever is unlocked by stop or mechanical means other then key.
Features and Benefits:
- Satin Stainless Steel finish
- Function: 20-Apartment or Corridor
- Handing: Left Hand Reverse
- Lever/Knob Design: Arch Trim
- Keyed Single Cylinder
- Cylinder Type: Yale 6-Pin LFIC Prep, Less Core
- UL & ULC Listed 3-Hour Fire Rating
- Std. Strike Height: 4-7/8 In.
- Door Thickness: 1-3/4 In.
- Std. Latch Backset Dim 2-3/4 In.
- Cover Plate: Stainless Steel, 7-1/2" x 2-3/4" x 1/2"
