Product Description

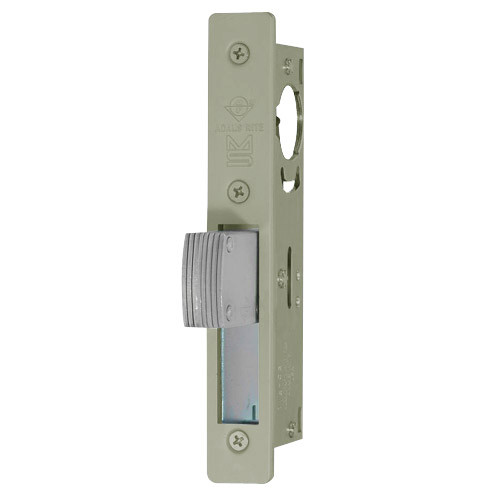

MS1850S-3-15-313 Adams Rite MS1850S Series Deadlock with Straight Bolt and 1-1/8" Backset in Dark Bronze Anodized Finish

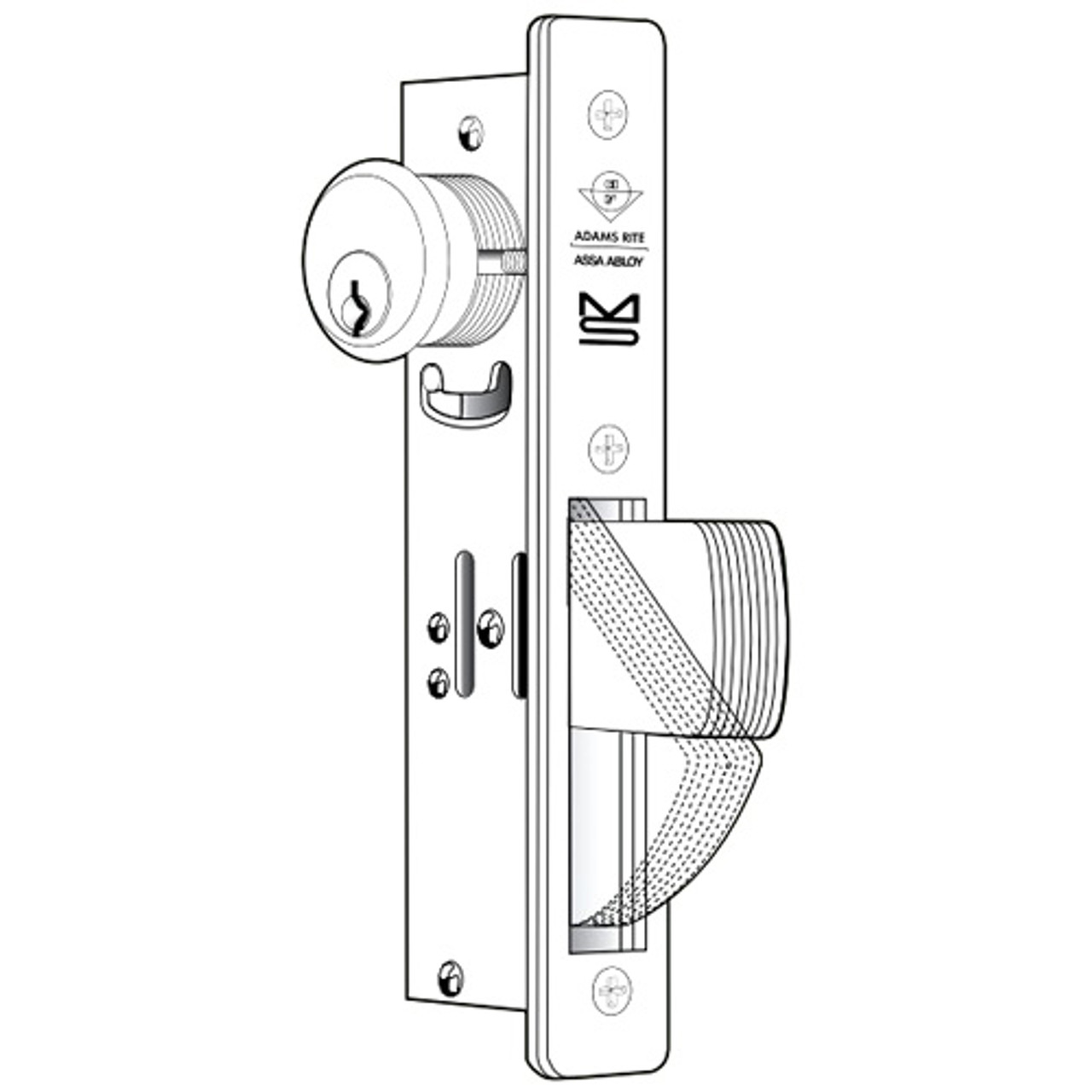

The MS1850S-3-15-313 series Deadlocks utilizes a laminated stainless steel bolt which is activated by a pivot mechanism to provide the maximum security for a single leaf narrow stile door such that even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be. It operates in such a way that the 360 degree turn of key or thumbturn throws or retracts the counterbalanced bolt and the key can be removed only when bolt is in a positively locked or unlocked position. The lock accepts any standard 1-5/32" diameter mortise cylinder or thumbturn from either or both sides. The cylinder must have MS dimensioned cam.
Benefits and Features:
- Dark Bronze Anodized finish

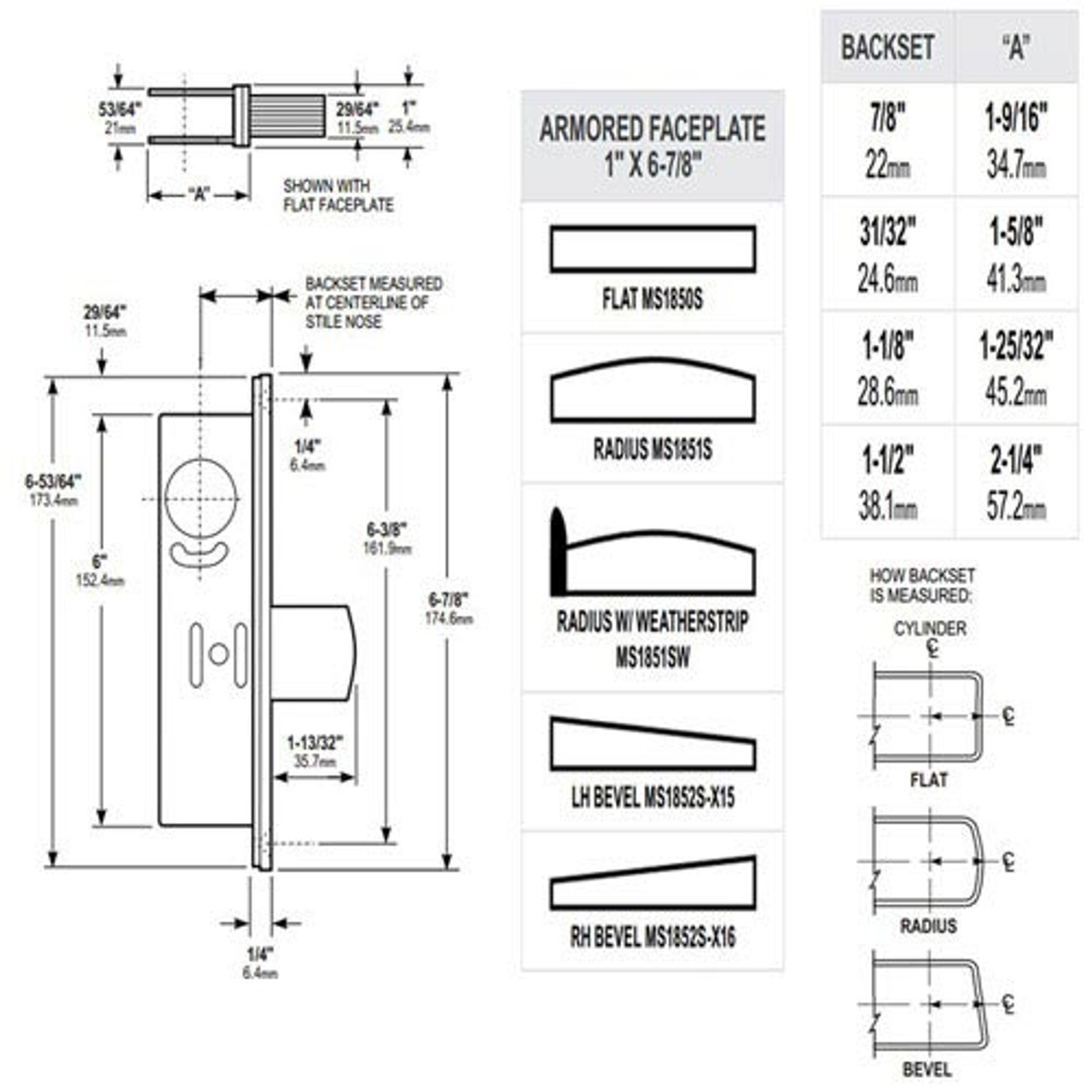

- Cylinder Backset: 1-1/8"
- Case is made of stainless steel with corrosion-resistant plating that measures 1" x 6" x depth (depth varies by backset)
- Straight bolt made of eight ply laminated stainless steel that measures 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw
- Flat faceplate measures 1" x 6-7/8"
- Handed operation - LH or RHR (Left Hand or Right Hand Reverse door)
- Cylinder is not included
- MS1850S Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS cam
- Grade 1 strength
- Strike not included
- 5 year limited manufacturer's warranty is included
Individually boxed with machine screws for mounting. Cylinders and/or thumbturns available separately.
