Product Description

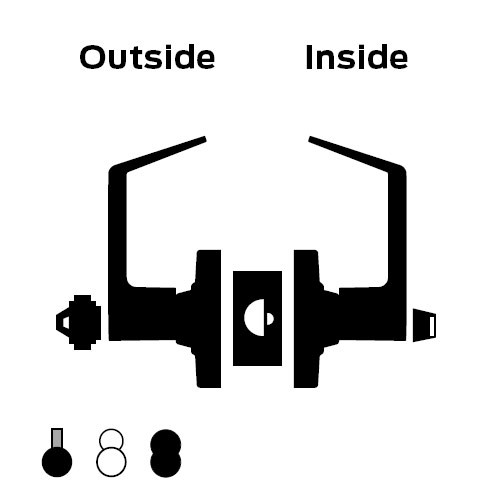

ND53JD-SPA-613 Schlage ND Series - Sparta Style Lock with Entrance Lock in Oil Rubbed Bronze Finish

The Schlage ND53JD-SPA-613 series of Sparta heavy-duty commercial cylindrical lock very easily stand up to constant use and abuse while keeping people and property safe. Our ND-Series locks have an ANSI Grade 1 rating and come in a choice of styles and finishes that fit your building's design. Every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage lock ND Series locks are the toughest cylindrical lock that gives you premium durability and performance in a lock which is easy to service and maintain.

Features and Benefits:

• Core is not included
• Oil Rubbed Bronze finish
• Sparta (SPA) Lever
• Very easy installation
• Pressure cast zinc lever; wrought brass rose construction material
• ANSI: F109
• Control keys are not included
• Entrance Lock: Turn/Push-button locking
• Push-button locks outside lever until it is unlocked with a key or by rotating the inside lever
• Inside lever always free for immediate egress
• Accepts large format IC cores, less core
• Backset: 2-3/4"(70mm) standard
• Rose Diameter: 3-7/16"
• Projection: 3-1/2"
• Lever Length: 4-15/16"
• Door Thickness: 1-5/8" - 2-1/8" (41mm - 54mm) standard
• UL listed hardware for up to three-hour fire door
• Strike: 1-1/4" x 4-7/8" ANSI type
• ANSI/BHMA A156.2-2011, series 4000 Grade 1 certified
• Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter, 1/2" throw
• Prepped for less full size interchangeable core
• Keyed functions of lever designs are field reversible
