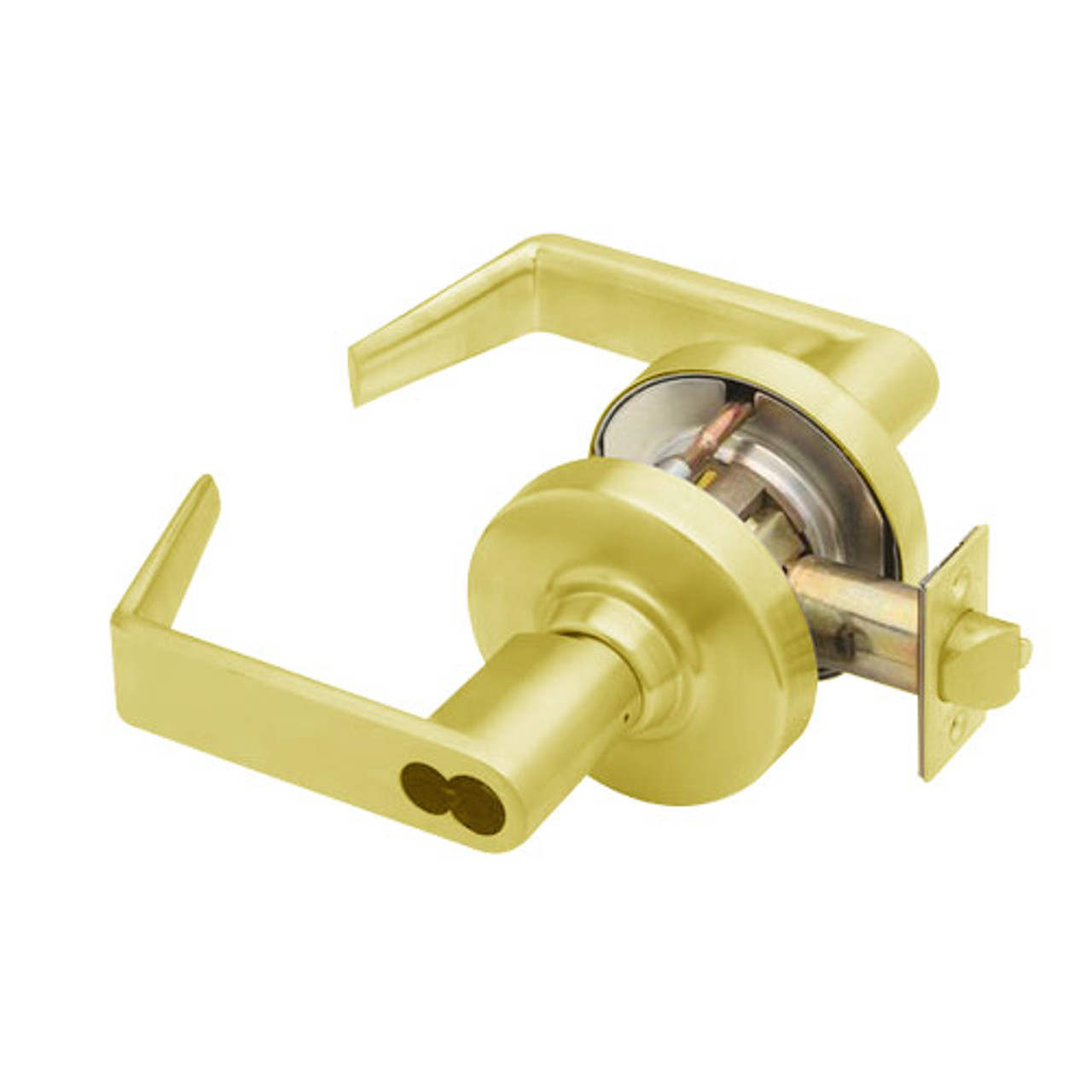

ND70JD-RHO-605 Schlage ND Series - Rhodes Style Lock with Classroom Lock in Bright Brass Finish
The Schlage ND70JD-RHO-605 series of Rhodes heavy-duty commercial cylindrical lock very easily stand up to constant use and abuse while keeping people and property safe. Our ND-Series locks have an ANSI Grade 1 rating and come in a choice of styles and finishes that fit your building's design. Every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage lock ND Series locks are the toughest cylindrical lock that gives you premium durability and performance in a lock which is easy to service and maintain.
Features and Benefits:
- Core is not included
- Bright Brass finish
- Rhodes (RHO) Lever
- Pressure cast zinc lever; wrought brass rose construction material
- ANSI: F84
- Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter, 1/2" throw
- Classroom Lock: Inside lever is always unlocked
- Outside lever is locked and unlocked by key
- Inside lever always free for immediate egress
- Backset: 2-3/4"(70mm) standard
- Rose Diameter: 3-7/16"
- Projection: 2-1/2"
- Lever Length: 4-7/8"
- Door Thickness: 1-5/8" - 2-1/8" (41mm - 54mm) standard
- Accepts large format IC cores, less core
- UL listed hardware for up to three-hour fire door
- Strike: 1-1/4" x 4-7/8" ANSI type
- Control keys are not included
- ANSI/BHMA A156.2-2011, series 4000 Grade 1 certified
- Prepped for less full size interchangeable core
- Keyed functions of lever designs are field reversible
- Very easy installation
