Product Description
ND73PD-RHO-625 Schlage ND Series - Rhodes Style Lock with Corridor Lock in Bright Chromium Plated Finish
The Schlage ND73PD-RHO-625 series of Rhodes heavy-duty commercial cylindrical lock very easily stand up to constant use and abuse while keeping people and property safe. Our ND-Series locks have an ANSI Grade 1 rating and come in a choice of styles and finishes that fit your building's design. Every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage lock ND Series locks are the toughest cylindrical lock that gives you premium durability and performance in a lock which is easy to service and maintain.
Features and Benefits:
- Bright Chromium Plated finish
- Rhodes (RHO) Lever
- Pressure cast zinc lever; wrought brass rose construction material
- ANSI: F90
- Backset: 2-3/4"(70mm) standard
- Rose Diameter: 3-7/16"
- Projection: 2-1/2"
- Lever Length: 4-7/8"

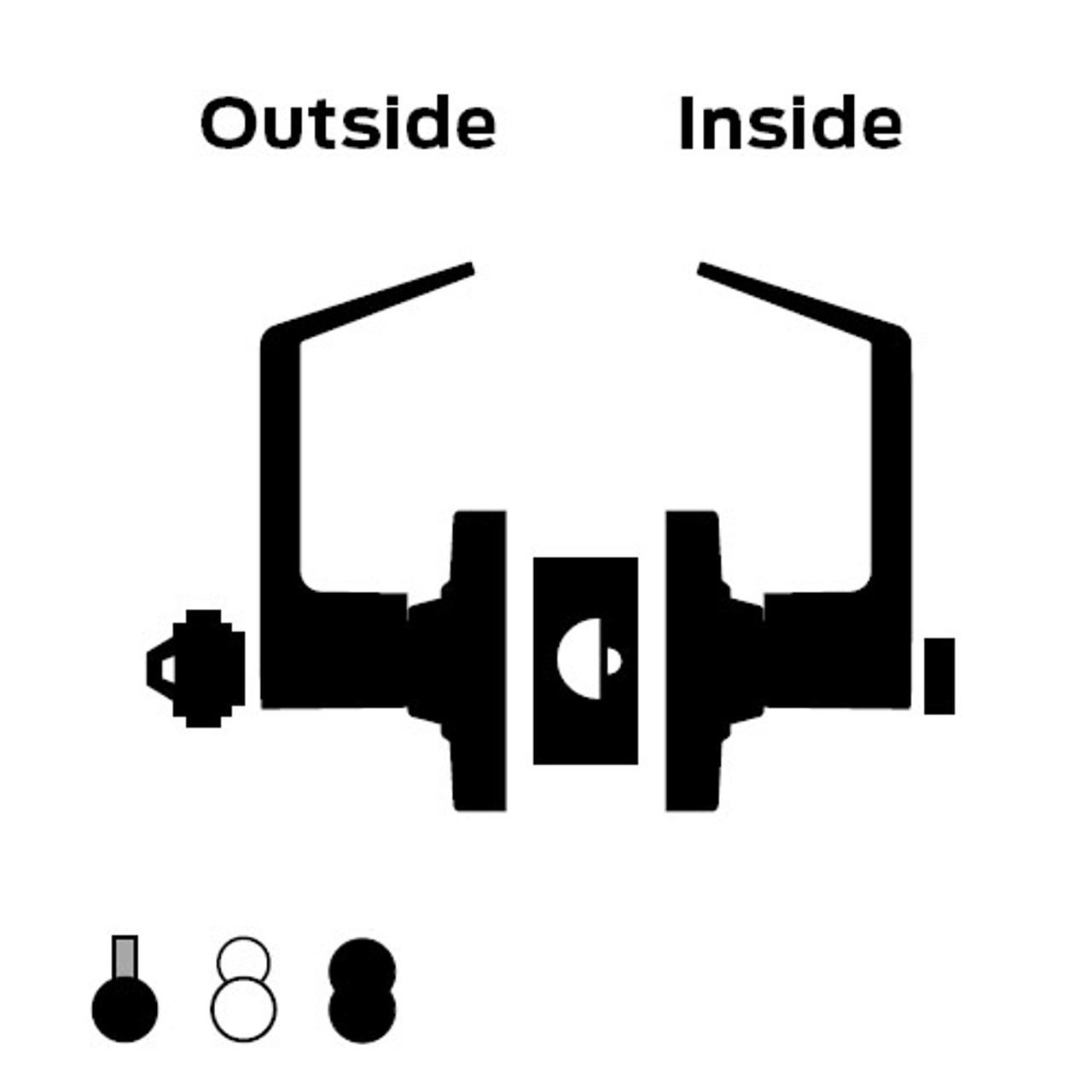

- Corridor Lock: Locked or unlocked by key from outside
- Push-button locking from inside
- Turn inside lever or close door to release button
- Inside lever always free for immediate egress
- Door Thickness: 1-5/8" - 2-1/8" (41mm - 54mm) standard
- UL listed hardware for up to three-hour fire door
- Strike: 1-1/4" x 4-7/8" ANSI type
- Standard keys are included
- ANSI/BHMA A156.2-2011, series 4000 Grade 1 certified
- Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter, 1/2" throw
- 6-Pin Everest 29 S123 keyway standard cylinder
- Keyed functions of lever designs are field reversible
- Very easy installation
