Product Description

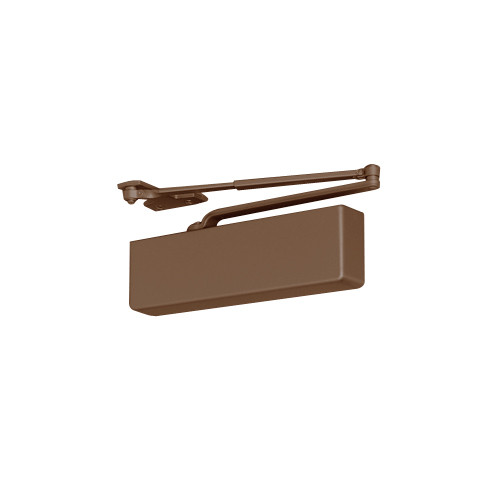

P7500DA-691 Norton 7500 Series Non-Hold Open Institutional Door Closer with Parallel Arm Application Only in Dull Bronze Finish

The Norton P7500DA-691 non hold open door closer offers the ideal combination of superior performance, strength and quality. The 7500 Series door closer is the ideal for interior or exterior doors in facilities that demand reliability. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Dull Bronze finish
• Handing: Non handed
• With the delayed action
• Non hold open
• Rack-and-pinion design
• Cast aluminum body
• Staked valves
• Adjustable spring sizes 1-6
• 2-3/16" (56mm) projection
• 1-1/2" (38mm) diameter piston
• Self-drilling screws
• Slide Tracks: push or pull side mounting
• Exceeds 25 million cycles (witnessed and verified by UL)
• Backcheck positioning valve

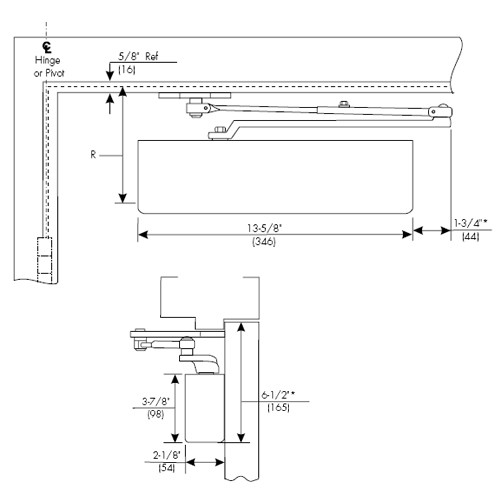

• Parallel arm application
