Product Description

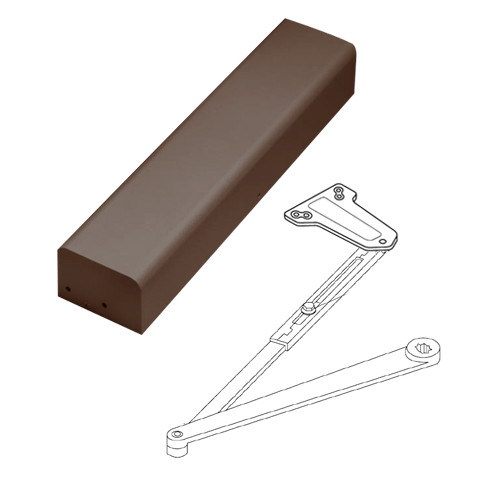

PA3581-690 Yale 3000 Series Architectural Door Closer with Parallel Low Profile Arm in Dark Bronze Finish

The Yale PA3581-690 architectural door closers are the ideal combination of superior performance, quality and strength. With new pinion and piston materials, improved valve design, and staked valves, the closers are the most efficient, dependable closers in the industry. The 3000 series is an ideal choice for interior or exterior doors in facilities that demand reliability such as conference centers, office buildings, courthouses, religious facilities, banks, nursing homes, restaurants, hotels and medical offices. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Dark Bronze finish
• Exceeds 15 million cycles
• Handing: Non-handed
• Non-hold open
• Manufactured in an ISO 9001 facility
• Cast aluminum body
• Staked valves
• Rack and pinion design
• Parallel low profile arm
• Full cover standard
• Separate and independent latch, sweep, and backcheck intensity valves
• 2-1/8" (54mm) projection (standard covers)
• 5/8" (16mm) diameter pinion journals
• 1-1/4" (32mm) diameter piston
• Adjustable spring sizes 1 through 6
