Product Description

PB4701LN-612 Yale 4700LN Series Non Keyed Passage or Closet Cylindrical Lock with Pacific Beach Lever in Satin Bronze Finish

The Yale PB4701LN-612 cylindrical lock series is designed for the commercial applications. The Yale 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 1.

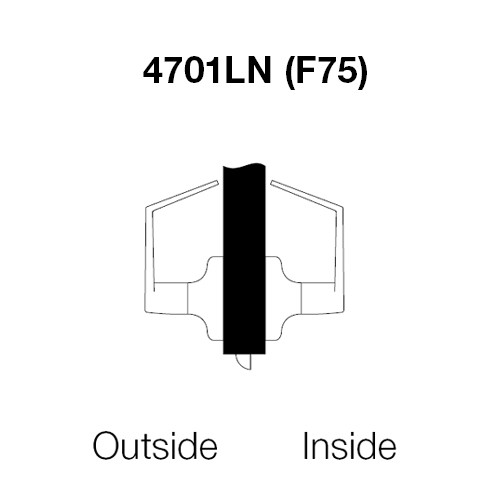

Passage or Closet Latch: Used for doors that do not require locking. Either lever operates latchbolt at all times.

Features and Benefits:

• Satin Bronze finish
• Backset: 2-3/4" standard
• Door Thickness: Adjustable from 1-3/8" to 1-3/4"
• Handing: Non handed
• Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard.
• Fronts: 2-1/4" x 1-1/8" beveled standard
• Non keyed latchsets
• Lever: Pacific Beach lever design
• Latchbolt: 1/2" stainless steel throw standard
• Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
• ANSI/BHMA: A156.2, Series 4000 Grade 1
• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
