Product Description

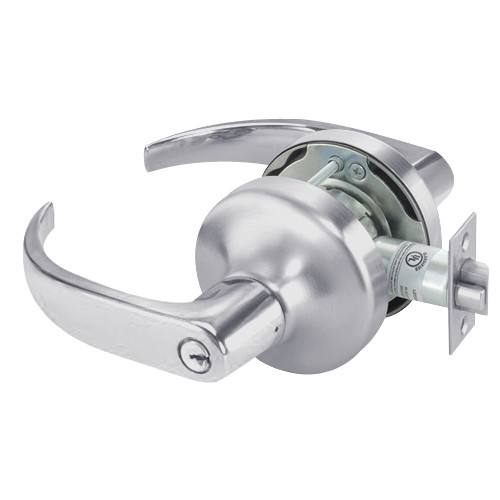

PB4718LN-626 Yale 4700LN Series Double Cylinder Intruder Classroom Security Cylindrical Lock with Pacific Beach Lever in Satin Chrome Finish
The Yale PB4718LN-626 cylindrical lock series is designed for the commercial applications. The Yale 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 1.

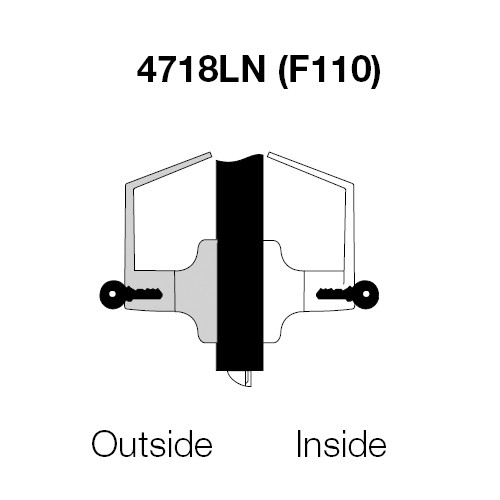

Intruder Classroom Security: Used for classroom doors. Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked by key from either side). Outside lever remains locked upon egress. Inside lever always active.
Features and Benefits:
- Satin Chrome finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/8" to 1-3/4"
- Handing: Non handed
- Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard.
- Fronts: 2-1/4" x 1-1/8" beveled standard
- Double cylinder
- Lever: Pacific Beach lever design
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
- ANSI/BHMA: A156.2, Series 4000 Grade 1
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
