Product Description

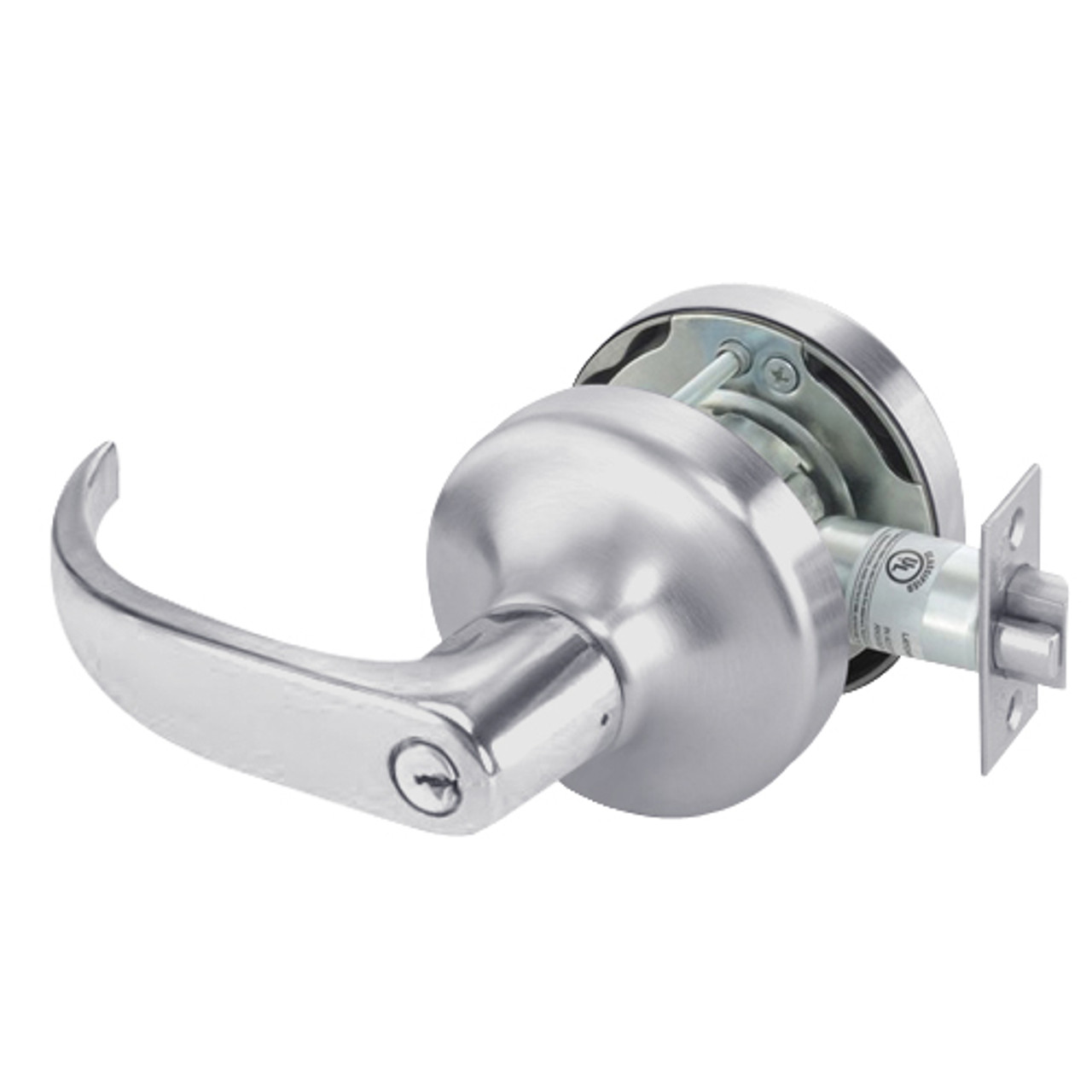

PB4739LN-626 Yale 4700LN Series Single Cylinder Communicating Storeroom Cylindrical Lock with Pacific Beach Lever in Satin Chrome Finish
The Yale PB4739LN-626 cylindrical lock series is designed for the commercial applications. The Yale 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 1.
Communicating Storeroom: For twin communicating or closet doors where one side operation is required or space between doors is limited. Deadlocking latchbolt. Latchbolt operated by key only in inside lever. Inside lever always locked. Blank rose. Should be used only where rooms have more than one entrance.
Features and Benefits:
- Satin Chrome finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/8" to 1-3/4"
- Handing: Non handed
- Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard.
- Fronts: 2-1/4" x 1-1/8" beveled standard
- Single cylinder
- Lever: Pacific Beach lever design
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
- ANSI/BHMA: A156.2, Series 4000 Grade 1
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
