Product Description

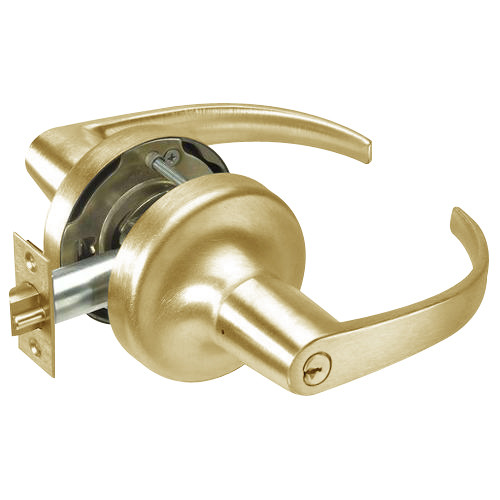

PB5304LN-606 Yale 5300LN Series Single Cylinder Entry Cylindrical Lock with Pacific Beach Lever in Satin Brass Finish
The Yale PB5304LN-606 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5300LN series cylindrical lockset feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural decor. All 5300LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5300LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 2.

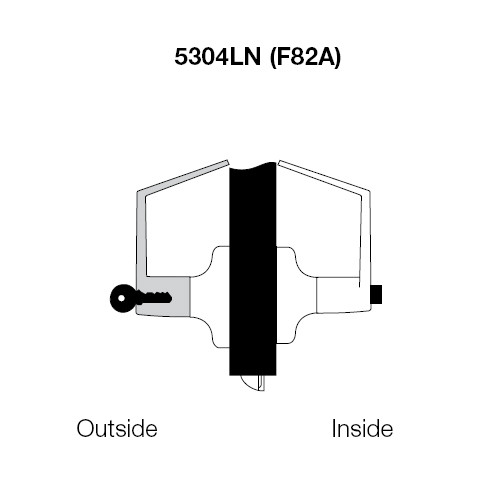

Entry Lock: Used for entrance or office doors. Deadlocking latchbolt, Either lever operates latchbolt (except when outside lever is locked from inside). Pushing button in inside lever locks outside lever. Latchbolt is operated by key in outside lever or by rotating inside lever
Features and Benefits:
- Satin Brass finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/4" to 2"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: Universal for both flat and beveled door edges.
- Single cylinder
- Lever: Pacific Beach lever design
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, zinc-plated, dichromated
- ANSI/BHMA: A156.2, Series 4000 Grade 2
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
