Product Description
PB5305LN-619 Yale 5300LN Series Single Cylinder Storeroom or Closet Cylindrical Lock with Pacific Beach Lever in Satin Nickel Finish
The Yale PB5305LN-619 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5300LN series cylindrical lockset feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural decor. All 5300LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5300LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 2.

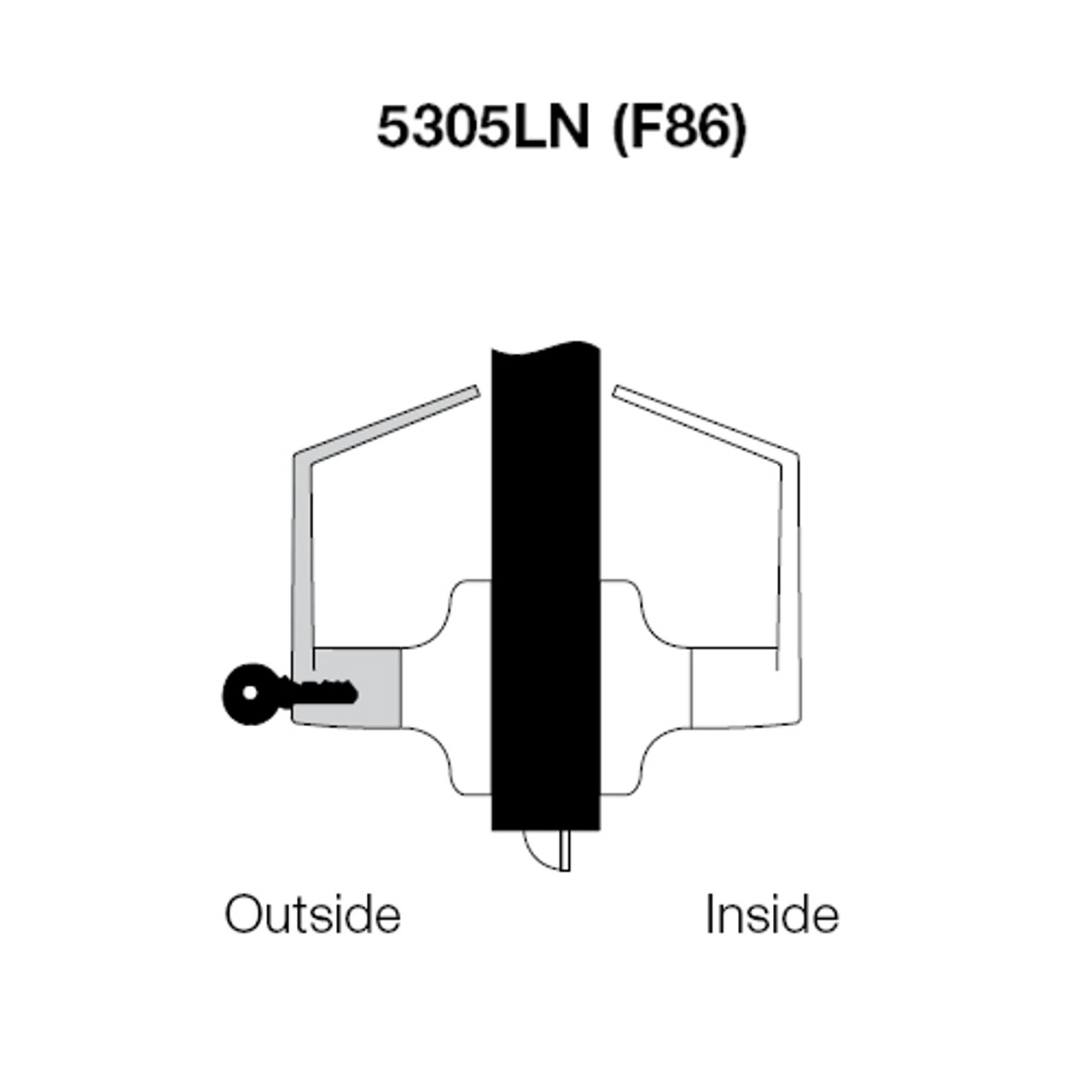

Storeroom or Closet Lock: Used for storeroom, utility, and exit doors. Deadlocking latchbolt, Latchbolt operated by lever inside, key in outside lever. Outside lever always locked.
Features and Benefits:
- Satin Nickel finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/4" to 2"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: Universal for both flat and beveled door edges.
- Single cylinder
- Lever: Pacific Beach lever design
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, zinc-plated, dichromated
- ANSI/BHMA: A156.2, Series 4000 Grade 2
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
