Product Description

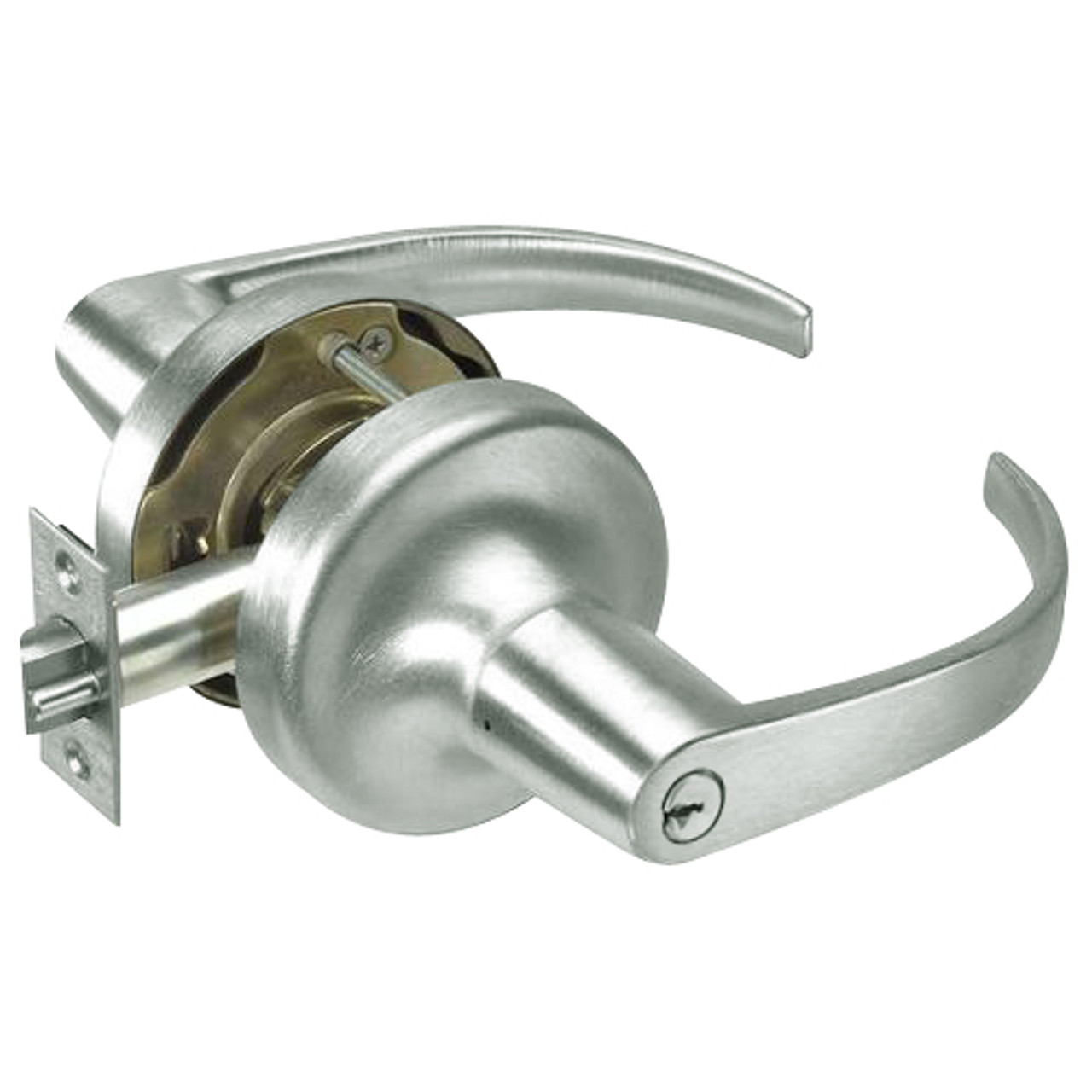

PB5307LN-619 Yale 5300LN Series Single Cylinder Entry Cylindrical Lock with Pacific Beach Lever in Satin Nickel Finish
The Yale PB5307LN-619 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5300LN series cylindrical lockset feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural decor. All 5300LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5300LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 2.

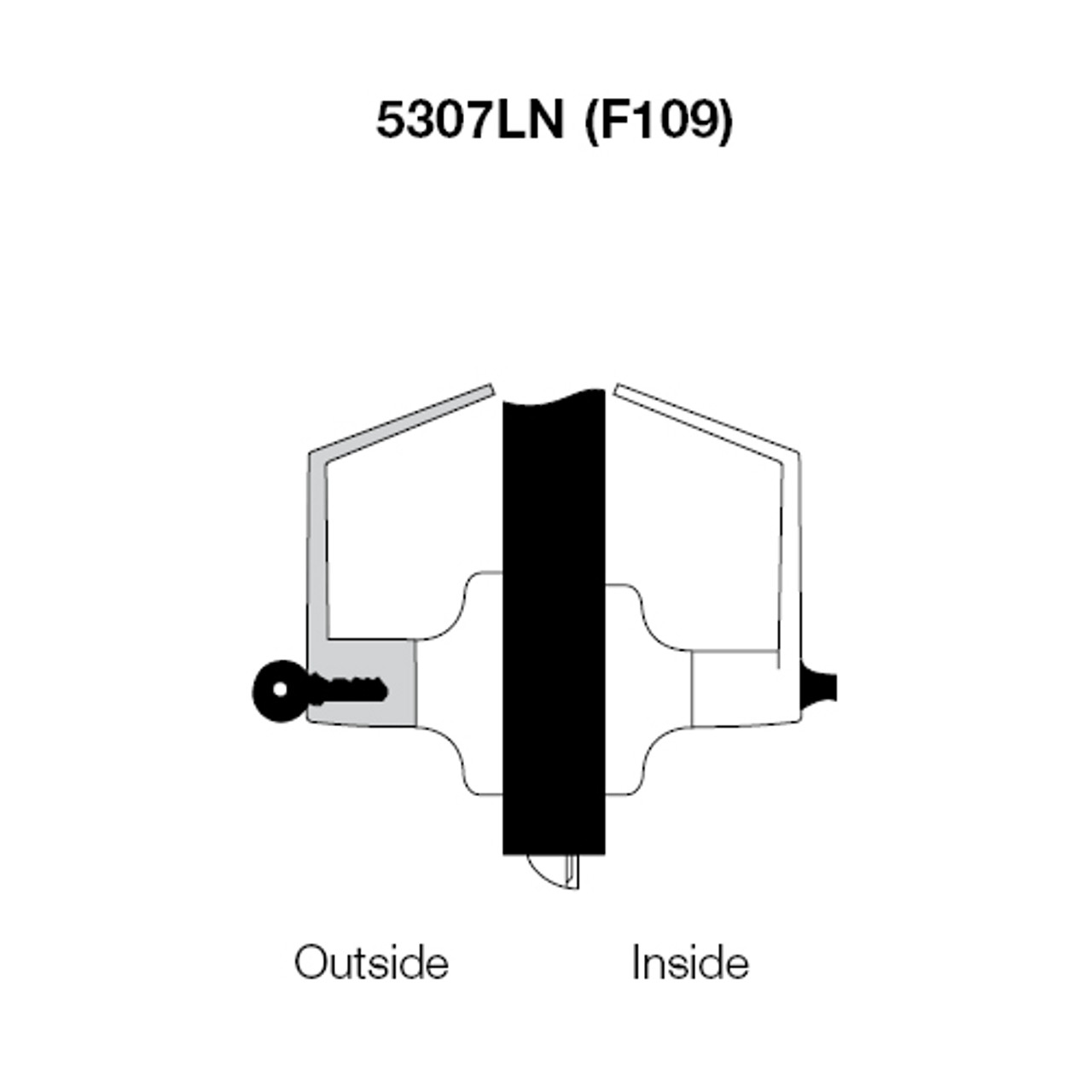

Entry Lock: Used for entrance, general home or office doors. Deadlocking latchbolt, Either lever operates latchbolt (except when outside lever is locked from inside). Pushing turn button in inside lever locks outside lever, and automatically releases when inside lever is turned or key is rotated in locked outside lever. Latchbolt is operated by key in outside lever or by rotating inside lever.
Features and Benefits:
- Satin Nickel finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/4" to 2"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: Universal for both flat and beveled door edges.
- Single cylinder
- Lever: Pacific Beach lever design
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, zinc-plated, dichromated
- ANSI/BHMA: A156.2, Series 4000 Grade 2
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
