Product Description

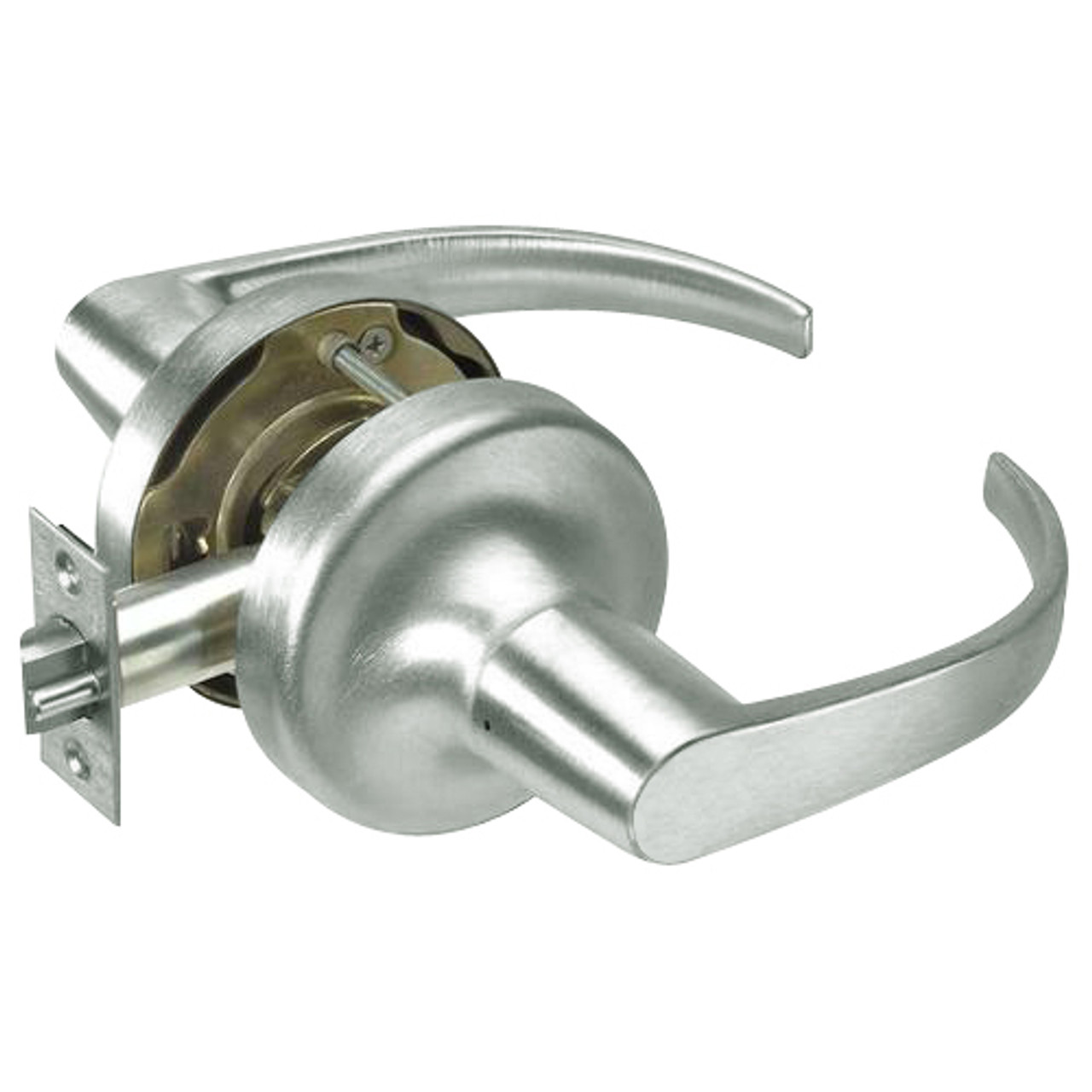

PB5309LN-619 Yale 5300LN Series Non-Keyed Exit Latch Cylindrical Locks with Pacific Beach Lever in Satin Nickel Finish
The Yale PB5309LN-619 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5300LN series cylindrical lockset feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural decor. All 5300LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5300LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 2.
Exit Latch: Used for exit doors with no-entry desired. Deadlocking latchbolt. Outside lever always locked. Inside lever always active.
Features and Benefits:
- Satin Nickel finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/4" to 2"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: Universal for both flat and beveled door edges.
- Non keyed lock
- Lever: Pacific Beach lever design
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, zinc-plated, dichromated
- ANSI/BHMA: A156.2, Series 4000 Grade 2
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
