Product Description

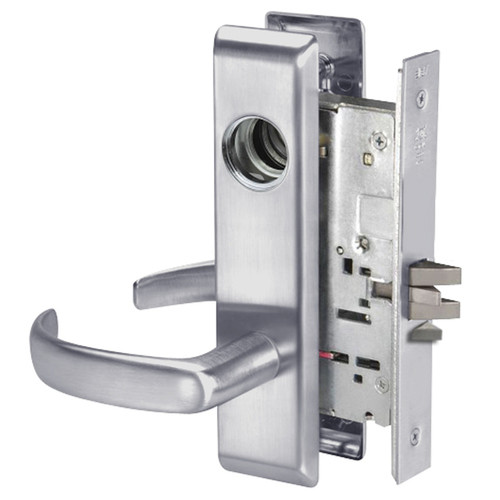

PBCN8847FL-626-LC Yale 8800FL Series Less Cylinder with Deadbolt Mortise Entrance Lock with Indicator with Pacific Beach Lever in Satin Chrome Finish
The Yale PBCN8847FL-626-LC mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.
Entrance or Apartment lock: Latchbolt retracted by lever either side, except when outside lever is locked by stopwork activator. Deadbolt operated by key outside, thumbturn inside. When outside lever is locked, latchbolt and deadbolt are operated by key outside. When deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever automatically retracts latchbolt and deadbolt with outside lever remaining locked.
Features and Benefits:
- Satin Chrome finish
- Armor front: 8" x 1-1/4"
- Backset: 2-3/4" only
- Handing: Non handed
- Door thickness: 1-3/4" standard
- Case: Wrought steel, zinc dichromated.
- Less Cylinder
- Lever: Pacific beach lever design
- Escutcheon: Camden CN trim design
- Deadbolt: 1" throw, solid investment cast stainless steel.
- Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
- Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
