Product Description

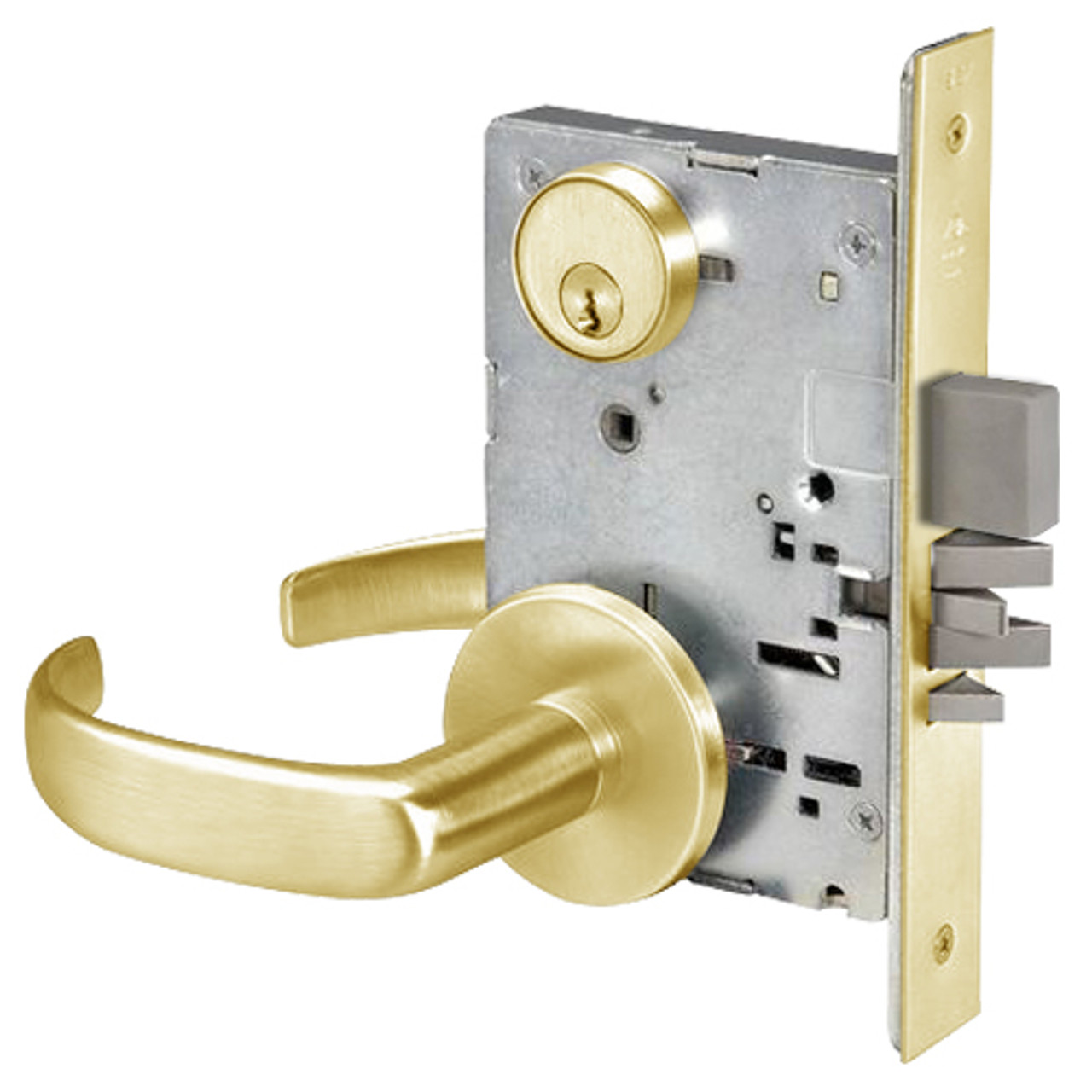

PBR8867FL-605 Yale 8800FL Series Single Cylinder with Deadbolt Mortise Dormitory or Exit Lock with Indicator with Pacific Beach Lever in Bright Brass Finish
The Yale PBR8867FL-605 mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.
Dormitory or Exit lock: Latchbolt retracted by lever either side, except when outside lever is locked by stopwork activator or automatically locked when deadbolt is projected. Deadbolt operated by key outside, thumbturn inside. When outside lever is locked, operating key outside retracts both latchbolt and deadbolt. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, with outside lever remaining locked.
Features and Benefits:
- Bright Brass finish
- Armor front: 8" x 1-1/4"
- Backset: 2-3/4" only
- Handing: Non handed
- Door thickness: 1-3/4" standard
- Case: Wrought steel, zinc dichromated.
- Single cylinder
- Lever: Pacific beach lever design
- Rose: Copenhagen rose trim
- Deadbolt: 1" throw, solid investment cast stainless steel.
- Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
- Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
