Product Description

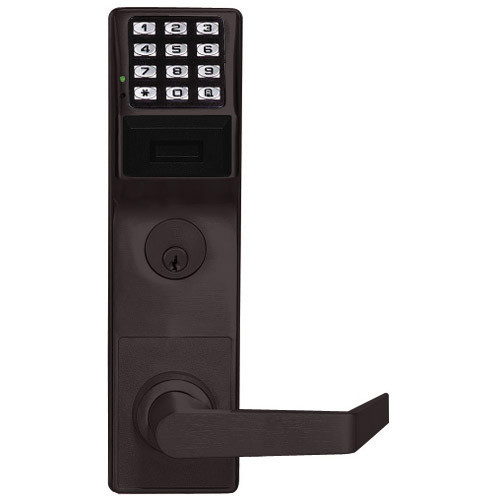

PDL6500CRL-10B Alarm Lock Trilogy Series Networx Digital Mortise Keyless Prox/Pin Lock Straight Leverset in Duronodic Finish

The Trilogy PDL6500CRL Series Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock's functionality. It provide a quick, easy and economical access system with advanced features and functions like various automatic schedules, event logs and support for up to 5000 users with 3-6 digit numeric PIN codes and prox ID card users. However, this lock has no wires to run and no access panels or power supplies to buy or install.

Features and Benefits:

• Duronodic finish
• Left hand straight lever classroom function Mortise Prox/Pin Lock
• 1-1/4" x 4-7/8" strike included as always
• 1-3/8" (3.5cm) mortise cylinder supplied
• Classroom function feature stainless steel latchbolt with 3/4" (1.91cm) projection and deadlocking latch
• Product comes with 2-3/4" backset as standard
• Rugged clutch mechanism and Grade 1 durability ensure long life
• 4 C-cell batteries included as always
• Alarm Lock can have up to 5000 different user codes (3-6 digits) and HID Proximity cards
• Standard ANSI A115 Mortise prep that is modified by adding additional through-bolt holes
• 35,000 event audit log
• Weatherproof -31 degree to +151 degree F (-35 degree to +66 degree C)
• Visual and audible entry indicators on front of lock
• UL listed hardware
• Cylinder: Classroom function supplied with straight cam
• ADA compliant levers
• 500 scheduled automatic lock/unlock events
• It easily fits into the door with thickness from 1-3/8" to 1-7/8" (4.46cm) wide dimensions
