Product Description
PNR8811-2FL-630 Yale 8800FL Series Double Cylinder Mortise Classroom Deadbolt Locks with Pinehurst Lever in Satin Stainless Steel Finish
The Yale PNR8811-2FL-630 mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

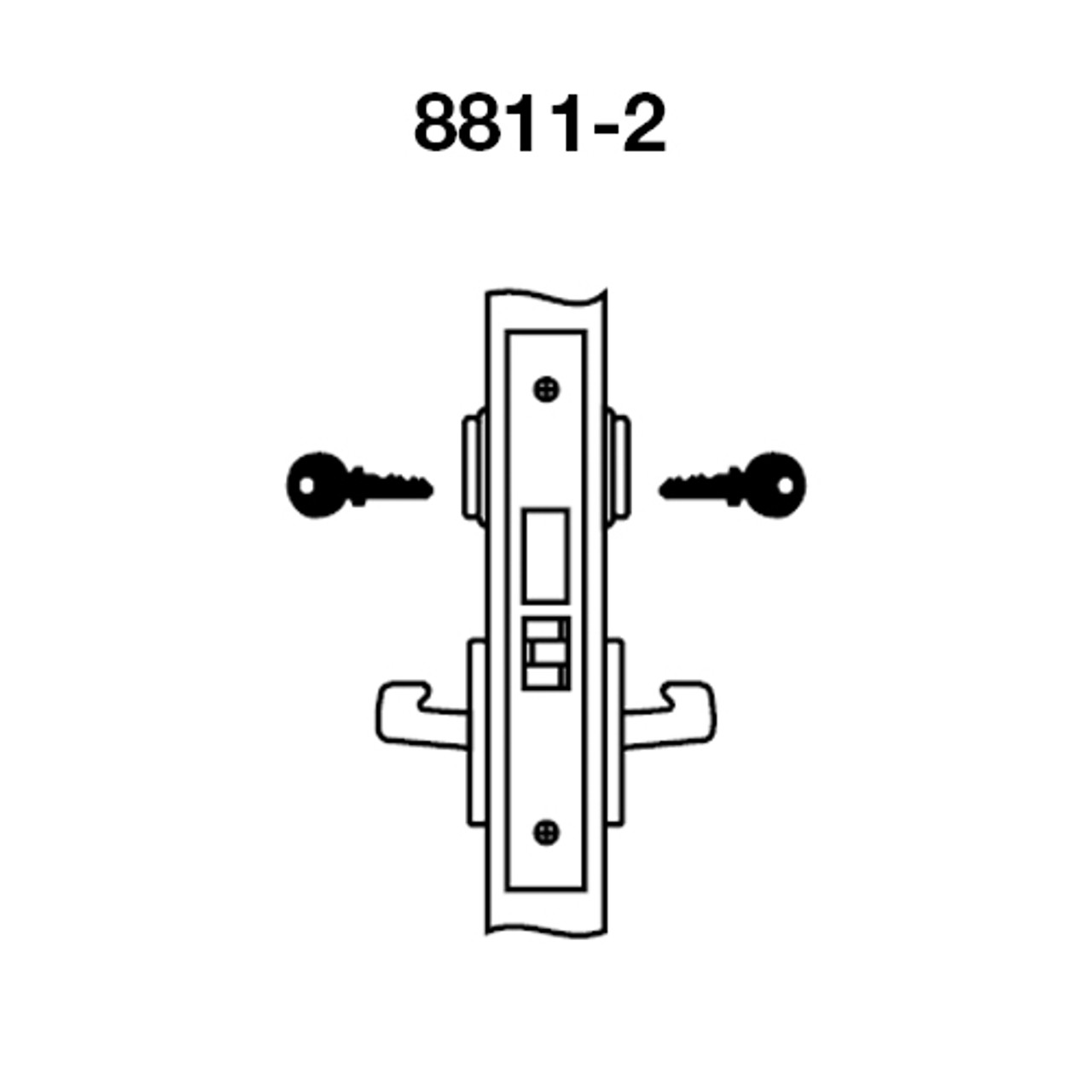

Classroom Deadbolt lock: Latchbolt retracted by lever either side unless outside lever is locked by key. Deadbolt operated by key either side. When deadbolt is projected, outside lever is automatically locked. Key retraction of deadbolt unlocks outside lever. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever.
Features and Benefits:
- Satin Stainless Steel finish
- Armor front: 8" x 1-1/4"
- Backset: 2-3/4" only
- Handing: Non handed
- Door thickness: 1-3/4" standard
- Case: Wrought steel, zinc dichromated.
- Double cylinder with deadbolt
- Lever: Pinehurst lever design
- Rose: Copenhagen rose trim
- Deadbolt: 1" throw, solid investment cast stainless steel.
- Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
- Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
