Product Description

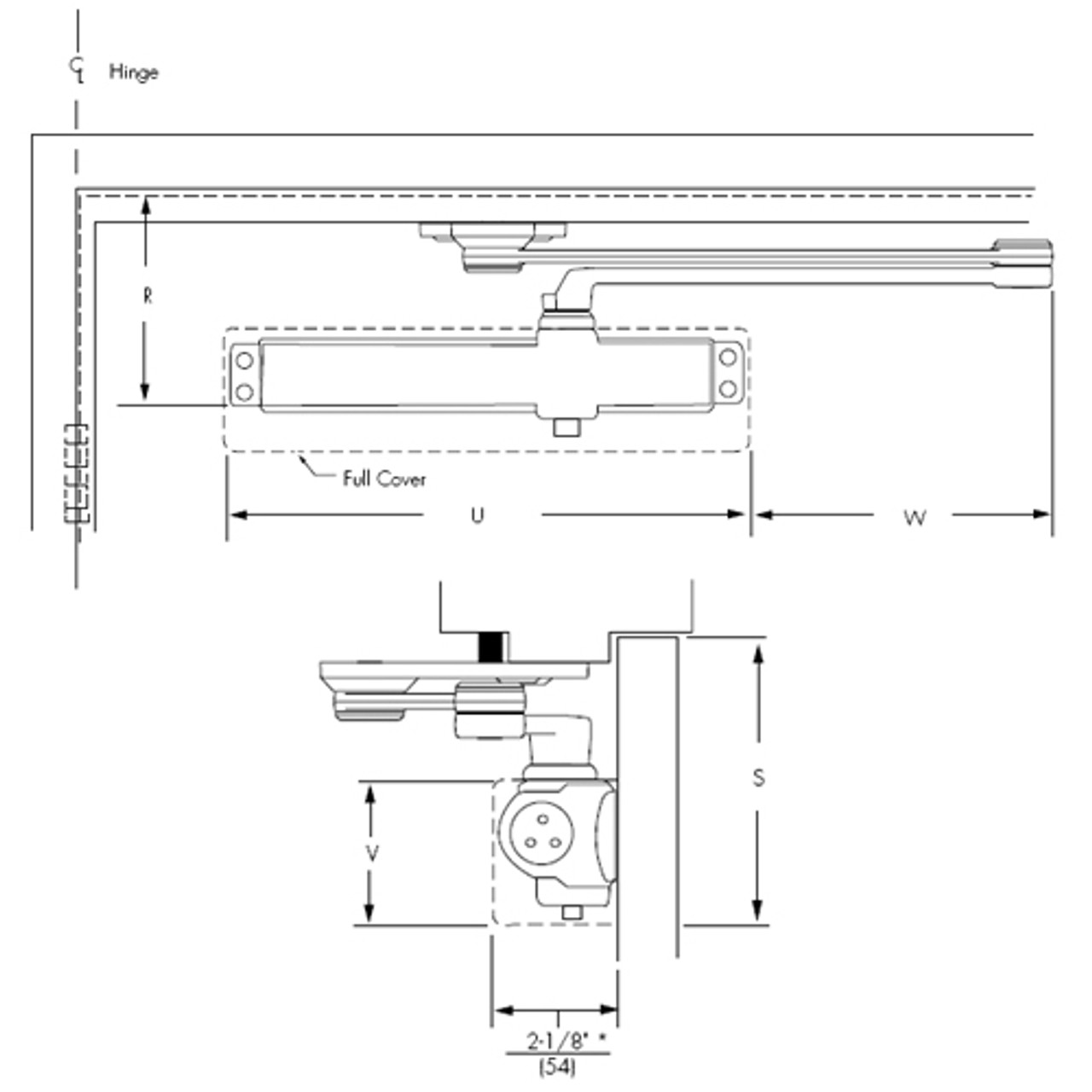

PR8301H-RH-690 Norton 8000 Series Hold Open Door Closers with Parallel Rigid Arm in Statuary Bronze Finish

The Norton PR8301H-RH-690 Series door closer is used for office and commercial interior and exterior doors. The 8000 Series Door Closers offer the ideal combination of appearance, unwavering quality and durability. The medium-duty closer able to meet the many configurations that occur in outfitting a door closer. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Statuary Bronze finish
• Hold open
• Handing: Right handed
• Staked valves
• Cast aluminum body
• Rack-and-pinion design
• Exceeds 15 million cycles
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Adjustable spring sizes 1 through 6
• Slim line cover is included
• This product is manufactured in an ISO 9001 facility
• Door Thickness: 1-3/4" - 2-1/4" (44- 57mm) thick doors
• Parallel rigid arm
