Product Description

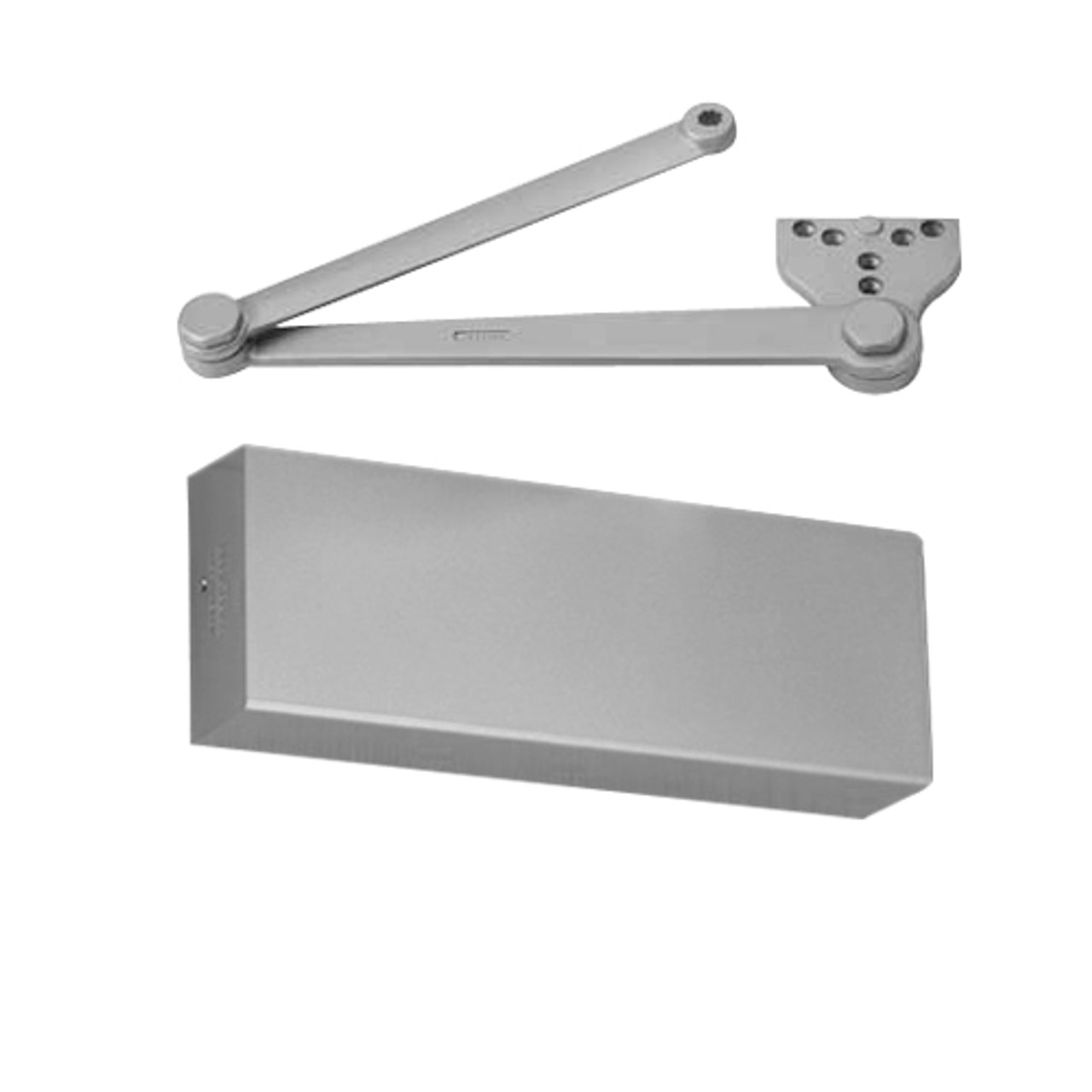

PR9500HM-RH-689 Norton 9500 Series Hold Open Cast Iron Door Closer with Parallel Rigid Arm in Aluminum Finish

The Norton PR9500HM-RH-689 cast iron door closer is used for interior or exterior doors and is ideal for high use openings. The 9500 series Cast Iron door closer offers the durability, flexibility and strength required to meet the needs of your facility. The Norton 9500 Series door closers are certified ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Aluminum finish
• Hold open
• Metal cover is included
• Handing: Right handed
• Adjustable size 1 thru 6
• Projection: 2-1/4" (57mm)
• Diameter piston: 1-1/2" (38mm)
• Cast iron closer body
• Rack and pinion design
• 5/8" (16mm) diameter pinion journals
• Closer mounting plate for easy installation
• Exceeds 25 million cycles (witnessed and verified by U.L.)
• Parallel rigid arm
• Standard, separate and independent, latch, sweep and backcheck intensity valves
