Product Description

PS9500STDA-696 Norton 9500 Series Non-Hold Open Cast Iron Door Closer with Push Side Slide Track in Gold Finish

The Norton PS9500STDA-696 cast iron door closer is used for interior or exterior doors and is ideal for high use openings. The 9500 series Cast Iron door closer offers the durability, flexibility and strength required to meet the needs of your facility. The Norton 9500 Series door closers are certified ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Gold finish
• Non hold open
• Handing: Non handed
• With the Delayed action
• Adjustable size 1 thru 6
• Projection: 2-1/4" (57mm)
• Diameter piston: 1-1/2" (38mm)
• Cast iron closer body
• Rack and pinion design
• 5/8" (16mm) diameter pinion journals
• Closer mounting plate for easy installation
• Molded ABS plastic cover is included
• Exceeds 25 million cycles (witnessed and verified by U.L.)

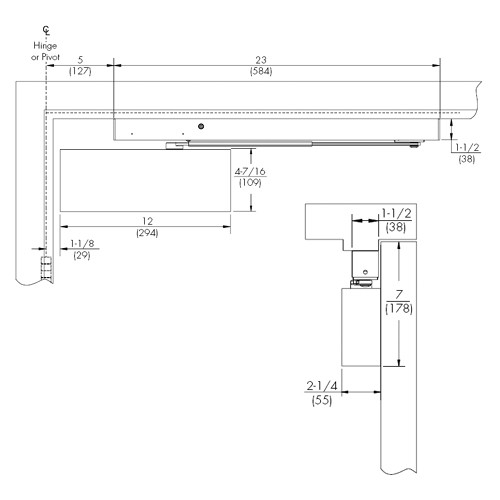

• Slide tracks: Push side mounting
• Standard, separate and independent, latch, sweep and backcheck intensity valves
