Product Description

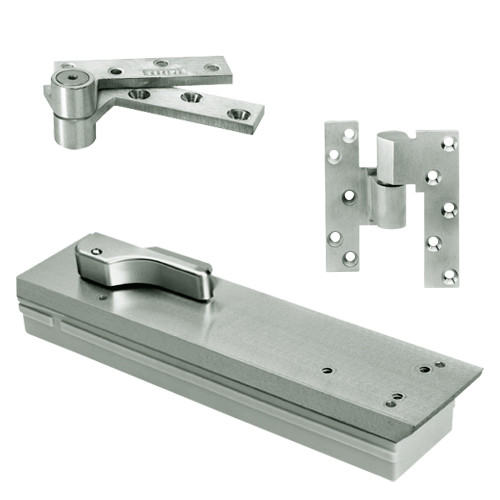

Q5105ABC105-SC-RH-619 Rixson Q51 Series 3/4" Offset Hung Shallow Depth Floor Closers in Satin Nickel Finish

The Rixson Q5105ABC105-SC-RH-619 provides the best mechanical means to support and control a door. It is designed to work with physics rules to provide long-term performance and reliability. This is ideal for single acting interior doors. Not recommended for high-traffic or exterior doors. These Q51 Series shallow depth floor closers are certified to ANSI/BHMA A156.4 standards. Surface attached bottom arm allows closer removal without demounting door.

Features and Benefits:

• Satin Nickel finish
• 3/4" offset hung
• Interior Doors
• Handing: Right handed, Single acting
• 105 degree hold-open
• "Q" closers have a floor plate
• Door Width: 48" (1219mm)
• Cycolac, rustproof cement case
• Vertical door adjustment
• Furnished with wood and machine screws
• Sealing a closer protects it from moisture
• Cement case and closer body are gasketed and fastened together.
• Standard top pivot: 180 included
• One M19 intermediate pivot included.
• Separate and independent valves for closing speed, latch speed and backcheck
• Non fire rated
