Product Description

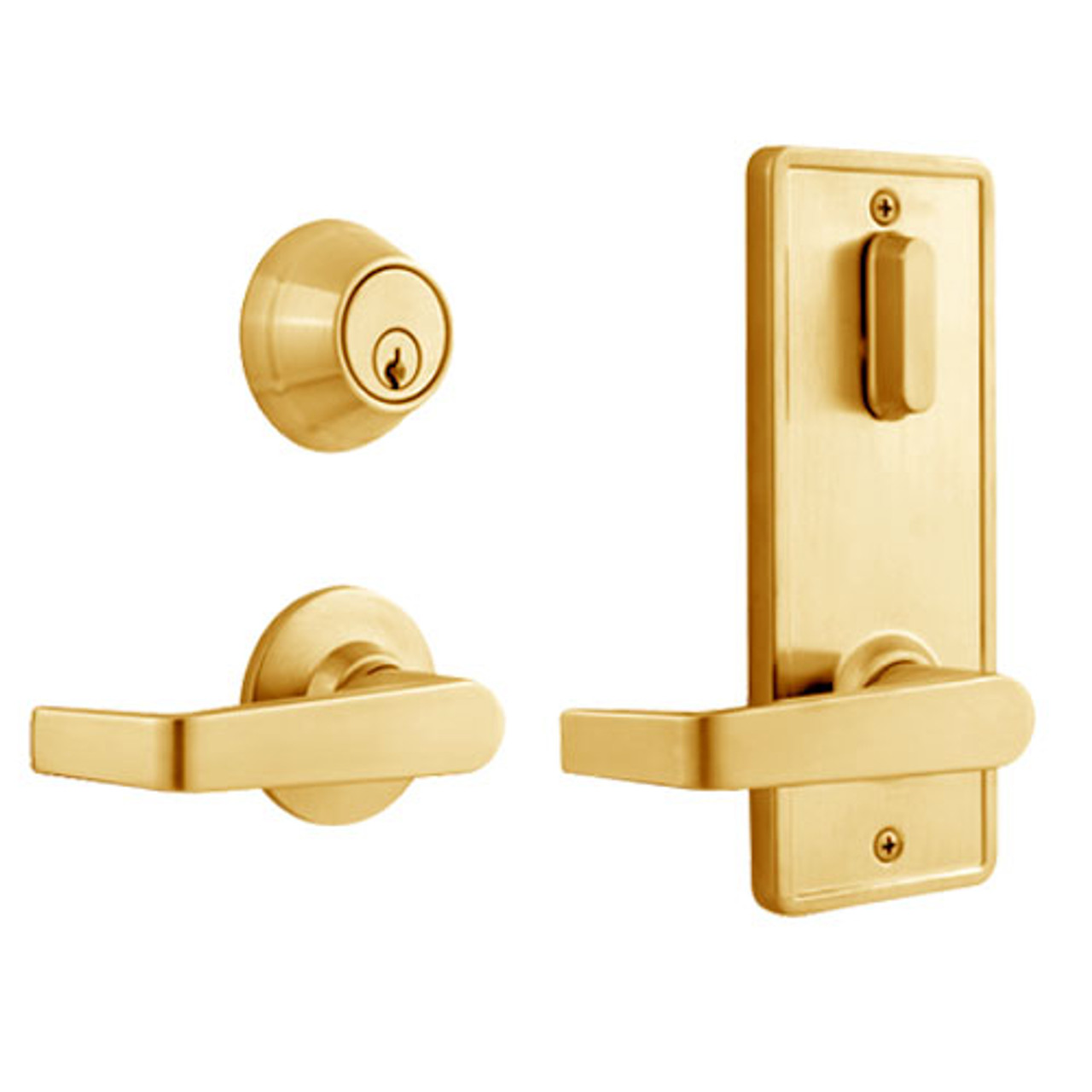

QCI230E605R8FLRSMT Stanley QCI200 Series Standard Duty Interconnected Single Locking with Sierra Lever in Bright Brass Finish
The Stanley QCI230E605R8FLRSMT commercial hardware series provides a better solution for multi-family, assisted living, commercial & mixed-use applications where single motion egress is required. These levers deliver premium performance and are designed to withstand the physical abuses of the applied environment. The STANLEY Commercial Hardware QCI200 series builds on STANLEYs proven quality and reliability while providing a solid value lever lock for light commercial applications. This Series standard duty interconnected locks has been Certified to ANSI/BHMA A156.12 1999 Grade 2.
Single-Locking (Passage Lever): Latch bolt operated by lever from either side. Rotating turn from inside or key from outside extends deadbolt to locked position. Both deadbolt and latch bolt are retracted simultaneously to unlock position by operating inside lever.
Features and Benefits:
- Bright Brass finish
- Handing: Non handed
- Lever: E - Sierra lever
- Single Locking (Passage Lever)
- Standard duty Interconnected locks
- Keyway: Smart key technology
- Lever latch: Radius 2-3/8; Deadbolt Latch: Radius 2-3/4
- Latch bolt - Keyed 1/2" (13mm) steel throw with auxiliary latch, passage 1/2" (13mm) spring latch.
- Strike - Lever-latch: Full Lip Radius Corner Strike, Deadbolt Latch: Standard
- Door Range: 1-3/8" - 1-3/4" (35mm-51mm) standard
- Backset: 2-3/4" (70 mm) standard
- Latch hole - 1" diameter edge bore
- Tested to meet Grade 2 specification of 400,000 cycles.
- Standard door prep: 2 1/8" cross bore (54mm)
- Rose diameter 2 1/2" (63mm)
- Heavy-duty torsion springs provide longer performance life and prevent lever sag.
