Product Description

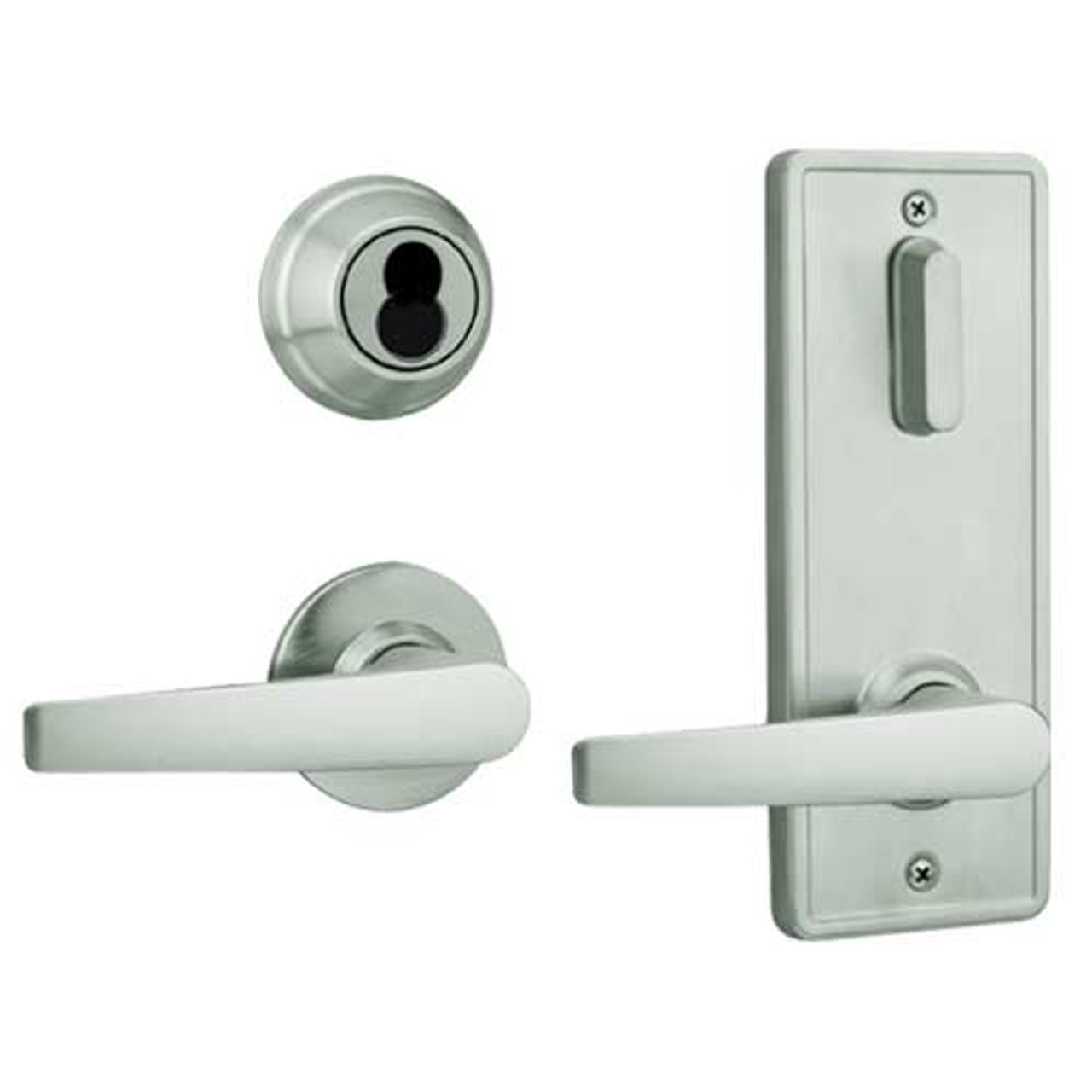

QCI231A619NR8FLRLC Stanley QCI200 Series Standard Duty Interconnected Single Locking Prepped for SFIC with Slate Lever in Satin Nickel Finish

The Stanley QCI231A619NR8FLRLC commercial hardware series provides a better solution for multi-family, assisted living, commercial & mixed-use applications where single motion egress is required. These levers deliver premium performance and are designed to withstand the physical abuses of the applied environment. The STANLEY Commercial Hardware QCI200 series builds on STANLEY’s proven quality and reliability while providing a solid value lever lock for light commercial applications. This Series standard duty interconnected locks has been Certified to ANSI/BHMA A156.12 – 1999 Grade 2.

Single-Locking (Passage Lever): Latch bolt operated by lever from either side. Rotating turn from inside or key from outside extends deadbolt to locked position. Both deadbolt and latch bolt are retracted simultaneously to unlock position by operating inside lever.

Features and Benefits:

• Satin Nickel finish
• Handing: Non handed
• Lever: A - Slate lever
• Single Locking (Passage Lever)
• Standard duty Interconnected locks
• Core is not included
li>Prepped for small format interchangeable core
• Lever latch: Narrow Radius 2-3/8; Deadbolt Latch: Narrow Radius 2-3/4
• Latch bolt - Keyed 1/2" (13mm) steel throw with auxiliary latch, passage 1/2" (13mm) spring latch.
• Strike - Lever-latch: Full Lip Radius Corner Strike, Deadbolt Latch: Standard
• Door Range: 1-3/8" - 1-3/4" (35mm-51mm) standard
• Backset: 2-3/4" (70 mm) standard
• Latch hole - 1" diameter edge bore
• Tested to meet Grade 2 specification of 400,000 cycles.
• Standard door prep: 2 1/8" cross bore (54mm)
• Rose diameter – 2 1/2" (63mm)
• Heavy-duty torsion springs provide longer performance life and prevent lever sag.
