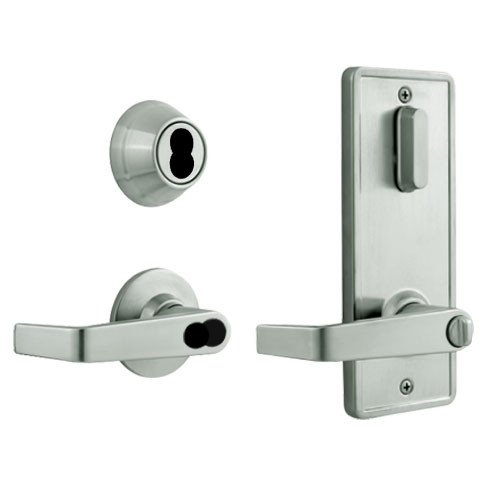

QCI251E619S8FLRLC Stanley QCI200 Series Standard Duty Interconnected Double Locking Prepped for SFIC with Sierra Lever in Satin Nickel

Overview
Warranty Information
Reviews

Product Description

QCI251E619S8FLRLC Stanley QCI200 Series Standard Duty Interconnected Double Locking Prepped for SFIC with Sierra Lever in Satin Nickel Finish

The Stanley QCI251E619S8FLRLC commercial hardware series provides a better solution for multi-family, assisted living, commercial & mixed-use applications where single motion egress is required. These levers deliver premium performance and are designed to withstand the physical abuses of the applied environment. The STANLEY Commercial Hardware QCI200 series builds on STANLEYs proven quality and reliability while providing a solid value lever lock for light commercial applications. This Series standard duty interconnected locks has been Certified to ANSI/BHMA A156.12 - 1999 Grade 2.

Double-Locking (Entry Lever): Deadlocking latch bolt is operated by lever from either side except when outside lever is made inoperable by locking device inside.When outside lever is locked, deadlocking latch bolt is operated by key outside. Inside locking device is manually operated to unlock outside lever. Rotating turn from inside or key from outside extends deadbolt to locked position.Operating inside lever bolt retracts both deadbolt and deadlocking latch simultaneously. Closing door shall not release locking device inside.

Features and Benefits:

Satin Nickel finish
Handing: Non handed
Lever: E - Sierra lever
Double Locking
Standard duty Interconnected locks
Core is not included
Lever & Deadbolt Latch: Square 2-3/8
Latch bolt - Keyed 1/2" (13mm) steel throw with auxiliary latch, passage 1/2" (13mm) spring latch.
Strike - Lever-latch: Full Lip Radius Corner Strike, Deadbolt Latch: Standard
Door Range: 1-3/8" - 1-3/4" (35mm-51mm) standard
Backset: 2-3/4" (70 mm) standard
Latch hole - 1" diameter edge bore
Tested to meet Grade 2 specification of 400,000 cycles.
Standard door prep: 2 1/8" cross bore (54mm)
Rose diameter - 2 1/2" (63mm)
Heavy-duty torsion springs provide longer performance life and prevent lever sag.
